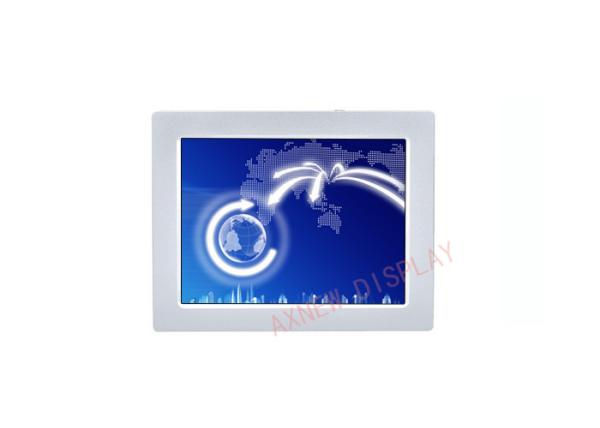

1280X1024 Industrial Touch Panel PC 19 Inch Touch Screen LCD Monitor
1280X1024 Industrial Touch Panel PC 19 Inch Touch Screen LCD Monitor
1280X1024 Industrial Touch Panel PC 19 Inch Touch Screen LCD Monitor
1280X1024 Industrial Touch Panel PC 19 Inch Touch Screen LCD Monitor
1280X1024 Industrial Touch Panel PC 19 Inch Touch Screen LCD Monitor
1280X1024 Industrial Touch Panel PC 19 Inch Touch Screen LCD Monitor
Specifications
Brand Name :
axnew
Model Number :
AXD-19OPPC-V1
Certification :
CE FCC
Place of Origin :
China
MOQ :
10 Units
Price :
US$200-400/Unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 units/month
Delivery Time :
5-7 working days
Packaging Details :
2 units/carton
Size :
19 inch
Type :
19'' panel pc
Brightness :
350 cd/m2
storage :
2G RAM;SSD 16G/32G Options
Resolution :
1280X1024
Viewing Angel :
170(H)/160(V)
Monitor Type :
Touch Panel PC
Contrast Ratio :
1000:1
USB Ports :
2x USB V2.0; 2xUSB V3.0
LAN :
1 x LAN RJ-45 connector
Serial Ports :
2 x COM ;RS232/RS485
Description

1280X1024 Industrial Touch Panel PC 19 Inch Touch Screen LCD Monitor

Panel PC Specifications
Model Number AXD-19OPPC-V1
19’’ panel pc
Case/Bezel Color white
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Touch Panel Industrial 5 wire Resistive Flat Screen
Touch response time 8ms (typical)
Optimal (native) Resolution 1280X1024
LCD panel Pixel pitch 0.297 x 0.297 mm
LCD panel Colors 16.7 million
LCD panel Brightness 350 cd/m2
LCD panel Response Time 5ms
Contrast Ratio 1000:1
Viewing Angle ( Wide )
Horizontal (left/right) ±85° or 170° total
Vertical (up/down) 80°(up), 80°(down) or 160° total
CPU Intel® Processor I3 (1.8GHz)
storage 2G RAM;SSD 16G/32G Options

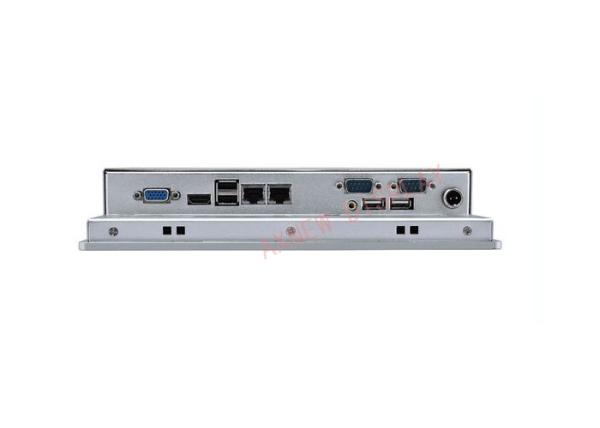

Serial Ports 2 x COM ;RS232/RS485
USB Ports 2x USB V2.0; 2xUSB V3.0
LAN 1 x LAN RJ-45 connector
DC Power In 1 x DC2.5 connector
Video Port 1X Line-out
Other Ports 1x LAN, 1X VGA ,1xHDMI,1X Audio
Internal Sockets & Connectors reserved for OEM project
Power Specification DC 12V
Working Environment
Temperature Operating: -10°C to 60°C ;Storage -20°C to 65°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Dimensions
Mounting Type Embedded Installation,wall mounting
Mechanical dimensions 423.0 x 327 x 53.0 mm
Weight (Net) 7.5 kgs/ piece, 1 piece/ carton
Drawings Please contact us for details

Features and Advantages


1.It's the latest evolution of Mini-ITX form factor industrial Motherboard with Dual GBE Lan.


2. It is based on Intel Celeron 3217U+HM76 chipset.Provide 2 Mini-PCIE and 1 Sim Slot to support Wifi/GPS/3G/MSATA.


3. 1 SODIMM slot,Supports up to 8GB, SATA (1 Sata 3.0, 2x Sata 2.0)and MSATA storage modes.


4. It supports 1080P HD and independent Dual view, 1 HDMI and 1 VGA . Dual Channel 24bit LVDS.
Motherboard Type

1280X1024 Industrial Touch Panel PC 19 Inch Touch Screen LCD Monitor1280X1024 Industrial Touch Panel PC 19 Inch Touch Screen LCD Monitor
