10 Point Multi Touch Panel PC Passive Cooled DC 9V-40v For Rack Mount Devices
10 Point Multi Touch Panel PC Passive Cooled DC 9V-40v For Rack Mount Devices
10 Point Multi Touch Panel PC Passive Cooled DC 9V-40v For Rack Mount Devices
10 Point Multi Touch Panel PC Passive Cooled DC 9V-40v For Rack Mount Devices
Specifications
Brand Name :
OEM
Model Number :
AXD-10PPC-V4A
Certification :
CE rohs
Place of Origin :
China
MOQ :
25 pcs
Price :
US$200-400pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1500units/month
Delivery Time :
5-7 working days
Packaging Details :
1 pcs/carton; 5 pcs/carton
Name :
10.4 inch industrial fanless panel pc
Brightness :
400nits
Touch :
pro capacitive touch
Processor :
Intel N2800
Memory :
2G RAM
SSD :
64G
Description

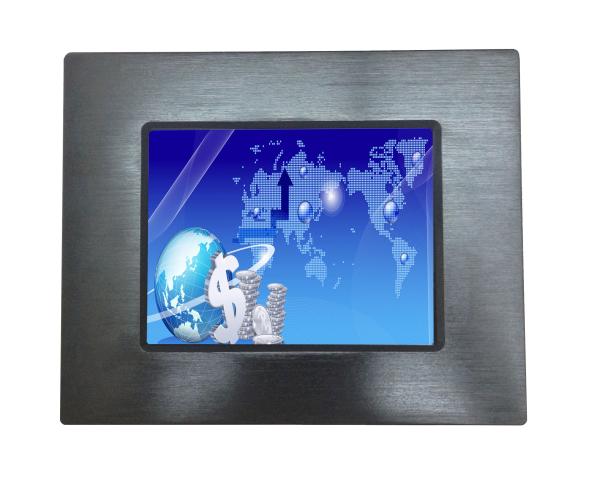

10'' 10 Point Multi Touch Panel PC Passive Cooled with DC 9V-40v For Rack Mount Devices

Panel PC information
Model Number AXD-10PPC-V4A
10.4’’ Industrial touch panel pc
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Touch Panel capacitive touch panel
Touch response time 8ms (typical)
Optimal (native) Resolution 800X600
LCD panel Pixel pitch 0.264 x 0.264 mm
LCD panel Colors 16.2 million
LCD panel Brightness 400 cd/m2
LCD panel Response Time 8ms
Contrast Ratio 500:1
Viewing Angle ( Wide )
Horizontal (left/right) ±70° or 140° total
Vertical (up/down) 60°(up), 70°(down) or 130° total
CPU

Soldered onboard Intel® N2800 1.86GHz

Processor; DDR3 800MHz SDRAM 2G
storage 32G SSD
Serial Ports 2x COM ports could be installed if needed.
USB Ports 4x USB external ports ; 6 six USB internal ports
LAN 1x LAN RJ-45 connector; could be two for options
Net 1 x Realtek RTL8111C Gigabit Ethernet controller
DC Power In 1 x DC Jack 2.5
Video Port 1 x HDMI
Watch Dog Timer 1~255 levels reset
Internal Sockets & Connectors 1 x Compact Flash socket (reserved for OEM project)
Power Specification DC 12V;DC8-40V for options
Working Environment
Temperature Operating: -10°C to 60°C ;Storage -20°C to 70°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Shock Operating 16G, 11ms & Non-operating 4G, 20ms (with
Dimensions
Mounting Type Embedded Installation
Weight (Net) 5.0 kgs/ piece
Drawings Please contact us for details

Features and Advantages

1,Fanless passive cooled mainboard with low consumption

2, 2G RAM, 64G SSD for memory


3. capacitive touchscreen makes the touch sense perfectly


4. Mounting holes on base bottom for tabletop security; VESA mounting on the backside


5. 10.4’’industrial Touch pc with wide voltage 8v-40v .

10 Point Multi Touch Panel PC Passive Cooled DC 9V-40v For Rack Mount Devices
