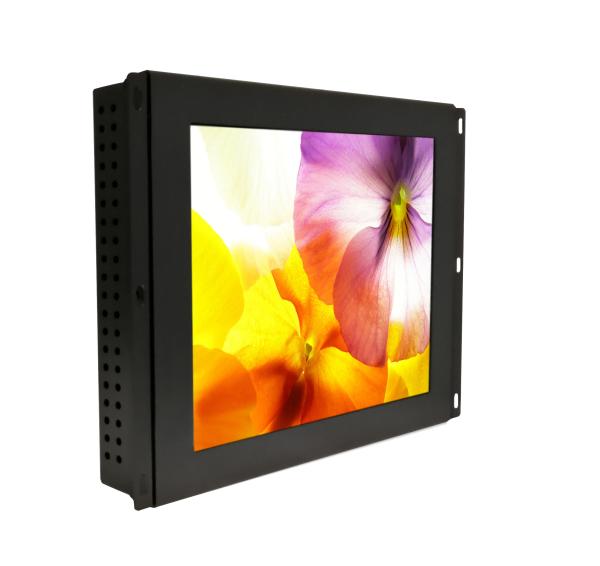

4/3 High Limunance Open Frame Touch Monitor 8 Inch With Anti-Vandal
4/3 High Limunance Open Frame Touch Monitor 8 Inch With Anti-Vandal
4/3 High Limunance Open Frame Touch Monitor 8 Inch With Anti-Vandal
4/3 High Limunance Open Frame Touch Monitor 8 Inch With Anti-Vandal
4/3 High Limunance Open Frame Touch Monitor 8 Inch With Anti-Vandal
4/3 High Limunance Open Frame Touch Monitor 8 Inch With Anti-Vandal
4/3 High Limunance Open Frame Touch Monitor 8 Inch With Anti-Vandal
4/3 High Limunance Open Frame Touch Monitor 8 Inch With Anti-Vandal
Specifications
Brand Name :
axnew
Model Number :
AXD-08OPN1P3-T4
Certification :
CE FCC
Place of Origin :
China
MOQ :
20 Units
Price :
US$100-200/Unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 units/month
Delivery Time :
5-7 working days
Packaging Details :
10 units/carton
Size :
8 inch
Type :
8" Color TFT touch Monitor
Brightness :
250cd/m^2
Signal interfaces :
VGA /HDMI
Resolution :
800x600
Viewing Angel :
140/120
Contrast Ratio :
500:1
Operating Temp. :
-10~70℃
Description

4:3 high limunance 8 inch open frame touch monitor with capacitive touch anti-vandal function

LCD monitor information
Model Number AXD-08OPN1P3-T4(VGA; HDMI)
8’’ Touch LCD display
Type 8 " TFT Active Matrix LCD with LED Backlight
Active Display Area(mm) 162.0(H)x121.5(V)
Pixel Pitch(mm) 0.213(H)x0.213(V)
Resolution 800 x 600,
Contrast Ratio 500:1 (typ.)
Display Color 16.7 M colors
Brightness 250(Typ)
Viewing Angles 140(H);120(V)
Response Time 10ms/15ms
Environmental Temperature
Operating Temperature -10℃~70℃
Storage Temperature -20℃~80℃
Signal Input
PC RGB analog; HDMI
Other connections 1X DC Jack 2.1; 1xUSB for touch connection
Power Specification
Voltage Consumption AC 100~240V,Universal,±10% ; AC/DC 12V4A
3.3W typical, normal operation
Touch Screen Optional
touch panel Type Pro-Capacitive Touch screen anti-vandal
Touch interface USB
Transmittance >=92%
Input voltage 3.3V-5.5V
working temperature -10℃~65℃
touch kits >=50,000,000 times in one position
Dimensions
Construction Rugged chassis & Black Color
Holes fixings Right Left fixing holes
Mechanical dimensions 223.0 x 158.0x 31.0 (mm)
Drawings

Please contact us for details

4/3 High Limunance Open Frame Touch Monitor 8 Inch With Anti-Vandal4/3 High Limunance Open Frame Touch Monitor 8 Inch With Anti-Vandal
