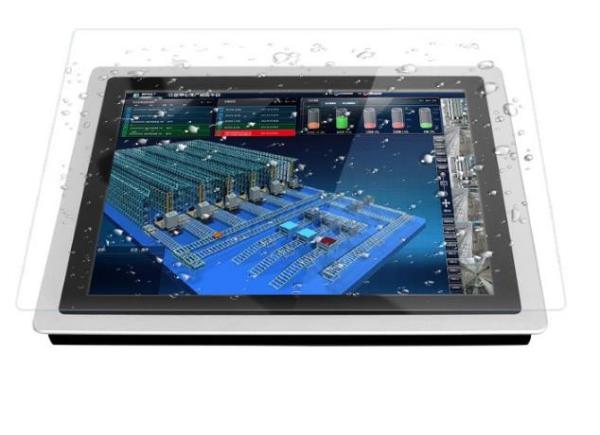

Atom N2800 Multi Touch Panel PC Wide Temperature with Anti-vandal water-proof
Atom N2800 Multi Touch Panel PC Wide Temperature with Anti-vandal water-proof
Atom N2800 Multi Touch Panel PC Wide Temperature with Anti-vandal water-proof
Atom N2800 Multi Touch Panel PC Wide Temperature with Anti-vandal water-proof
Specifications
Brand Name :
AXNEW
Model Number :
AXD-15PPC-A2 C
Certification :
CE/FCC/ROHS/UL/CCC
Place of Origin :
Shenzhen China
MOQ :
20 Pieces
Price :
US$400-700/pcs
Payment Terms :
Depends on product and order quantity
Supply Ability :
1000 pieces/month
Delivery Time :
10-15 working days
Packaging Details :
5 Pcs /Carton with firm foam
Name :
15.0 inch Multi Touch Panel PC
CPU :
ATOM N2800 1.86GHZ
Contrast Ratio :
700:1
Brightness :
400cd/m^2
Input signal :
VGA/DVI
Viewing Angles :
160(H)/140(V)
Application :
Advertising|industrial|Kiosk|POS
Description

15" Wide Temperature Atom N2800 Multi Touch Panel PC with Anti-vandal water-proof Function

Features and Advantages


1. Fanless Design; Ultra Slim and Compact Mechanical Design
2. High Luminance LCD Panel
3. Intel® Atom™ N2800 1.86GHz Processor
4. 15 " 1024 x 768 Resolution Color TFT LCD Display
5. Fully IP65 Waterproof on the surface
6. Supports Wide Range DC Power Input (12V)

Specifications datasheet

Panel PC information
Model Number AXD-15PPC-A2 C
15.0’’ Multi Touch panel pc
Case/Bezel Color Black/Silver
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Touch Panel Industrial Capacitive Flat Screen
Touch response time 8ms (typical)
Optimal (native) Resolution 1024x768
LCD panel Pixel pitch 0.264 x 0.264 mm
LCD panel Colors 16.7 million
LCD panel Brightness 400 cd/m2
LCD panel Response Time 8ms
Contrast Ratio 700:1
Viewing Angle ( Wide )
Horizontal (left/right) ±80° or 160° total
Vertical (up/down) 80°(up), 80°(down) or 160° total
CPU

Soldered onboard Intel® Atom™N2800 1.86GHz

Processor; DDR3 800MHz SDRAM ; Chipset: Intel® D2550 + ICH10M
storage 16G SSD up to 64 G
Serial Ports 4 x COM ports (1x RS-232/422/485 by-pin connector)
USB Ports 2 x USB external ports ; 6 six USB internal ports
LAN 2 x LAN RJ-45 connector
Net 1 x Realtek RTL8111C Gigabit Ethernet controller
DC Power In 1 x 4-pin connector
Video Port 1 x Video Output
Watch Dog Timer 1~255 levels reset
Internal Sockets & Connectors 1 x Compact Flash socket (reserved for OEM project)
Power Specification DC 12V
Working Environment
Temperature Operating: -10°C to 60°C ;Storage -20°C to 75°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Shock Operating 16G, 11ms & Non-operating 4G, 20ms (with
Dimensions
Mounting Type Embedded Installation
Mechanical dimensions 376 x 303.5 x 52.7 mm
Weight (Net) 5.5 kgs/ piece
Drawings Please contact us for details

Packaging & Delivery

Packing details

1x 15.0 inch Industrial Touch Panel PC ;

Packed in1 piece/carton with protection foam

Optional accessories:1x Power supply cable, 1x power

adapter
Delivery terms

7- working days for stock products after receiving payments; 15 working days for order production
