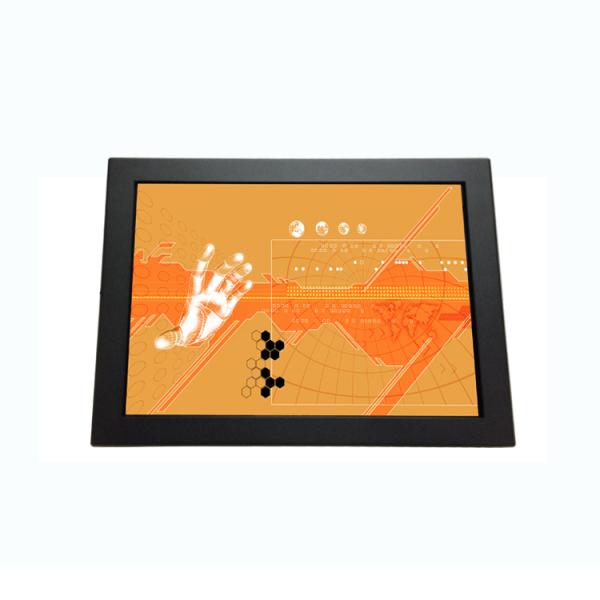

Small Touch Screen Pc 10 inch Wide screen 16/10 , android industrial panel pc
Small Touch Screen Pc 10 inch Wide screen 16/10 , android industrial panel pc
Small Touch Screen Pc 10 inch Wide screen 16/10 , android industrial panel pc
Small Touch Screen Pc 10 inch Wide screen 16/10 , android industrial panel pc
Specifications
Brand Name :
axnew
Model Number :
AXD-10PPC-A2C
Certification :
CE FCC
Place of Origin :
China
MOQ :
5 Units
Price :
US$100-300/Unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2200 units/month
Delivery Time :
5-7 working days
Packaging Details :
5 units/carton
Name :
10 inch capacitive andriod touch panel pc
Screen :
10 inch 1280x800 IPS screen
Andriod board :
Quad Core with ARM CORTEX-A9
Memory :
2G DDR3
Flash :
8G
Video Outputs :
AV; HDMI; LVDS output
LAN :
RJ45
Wifi :
yes
Ports :
USB;RS232 rs485 could be options
Touch :
10 points projected capacitive touch
DC :
12V
Description

10 inch Wide screen 16:10 Mini Touch panel pc For Industrial Applications

Panel PC information
Model Number AXD-10PPC-A2 C
10’’ Andriod Touch panel pc
Case/Bezel Color Black
TFT Type IPS LCD with LED backlight
Aspect ratio 16:10
Useful Screen Area 220.6 mm x 139.6 mm
Touch Panel Industrial Resistive Flat Screen
Touch response time 10ms (typical
Touch PC Dimensions 262x 206x53.3 mm
Optimal (native) Resolution 1280 x 800
LCD panel Pixel pitch 0.1695 x 0.1695 mm
LCD panel Colors 262K/16.7 million
LCD panel Brightness 350 cd/m2
LCD panel Response Time 25 ms
Contrast Ratio 800:1
Viewing Angle ( Wide )
Horizontal (left/right) ±85° or 170° total
Vertical (up/down) 85°(up), 85°(down) or 170° total
Output Interface VGA/HDMI type/ AV/Rs232 Options
Input Interface USB*3
Net Internet LAN
Watch Dog Technology Support
Power Specification External AC to DC power brick
Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 36W max
ECM (Embed Computer Module) Quad Core ARM CORTEX-A 9
DDR3: 2G; NAND :8G
Operation System:Android 4.42
Temperature Operating: -10°C to 60°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions 490 x 440 x340 mm (Five pieces in one )
Weight (approx.) Actual: 11kg ;Shipping: 15kg
Dimensions
Holes fixings Vesa mounting 100x100
Mechanical dimensions 262x 206x53.3 mm
Drawings Please contact us for details

ports shown:

Small Touch Screen Pc 10 inch Wide screen 16/10 , android industrial panel pc

Small Touch Screen Pc 10 inch Wide screen 16/10 , android industrial panel pc

Small Touch Screen Pc 10 inch Wide screen 16/10 , android industrial panel pc
