12 4/3 Resistive Mini Touch Panel PC Passive Cooled 12V For Industrial Kiosks
12 4/3 Resistive Mini Touch Panel PC Passive Cooled 12V For Industrial Kiosks
12 4/3 Resistive Mini Touch Panel PC Passive Cooled 12V For Industrial Kiosks
12 4/3 Resistive Mini Touch Panel PC Passive Cooled 12V For Industrial Kiosks
Specifications
Brand Name :
OEM
Model Number :
AXD-12PPC-V3A
Certification :
CE rohs
Place of Origin :
China
MOQ :
5 pcs
Price :
US$200-400
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1500units/month
Delivery Time :
5-7 working days
Packaging Details :
1 pcs/carton; 5 pcs/carton
Name :
12 inch industrial fanless panel pc
Brightness :
450nits
Touch :
5 wire resistive touch
CPU :
Blu-ray Burner
Processor :
Intel J1900 Quad Core
Memory :
4G RAM
SSD :
64G;132G
DC :
8V-30V;12V;24V
Description

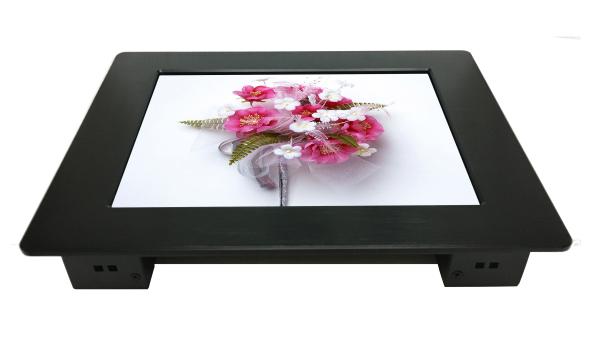

12" 4:3 Resistive Mini Touch Panel PC Passive Cooled 12V For Industrial Kiosks

Panel PC information
Model Number AXD-12PPC-V3A
12.1’’ Industrial touch panel pc
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Touch Panel 5 wire industrial resisitive Flat Screen
Touch response time 8ms (typical)
Optimal (native) Resolution 800X600
LCD panel Pixel pitch 0.264 x 0.264 mm
LCD panel Colors 16.2 million
LCD panel Brightness 450 cd/m2
LCD panel Response Time 8ms
Contrast Ratio 500:1
Viewing Angle ( Wide )
Horizontal (left/right) ±70° or 140° total
Vertical (up/down) 60°(up), 70°(down) or 130° total
CPU

Soldered onboard Intel® Celeron J1900 2.0GHz

Processor; DDR3 800MHz SDRAM
storage 64G SSD
Serial Ports 2x COM ports could be installed if needed.
USB Ports 4x USB external ports ; 6 six USB internal ports
LAN 1x LAN RJ-45 connector; could be two for options
Net 1 x Realtek RTL8111C Gigabit Ethernet controller
DC Power In 1 x DC Jack 2.5
Video Port 1 x HDMI
Watch Dog Timer 1~255 levels reset
Internal Sockets & Connectors 1 x Compact Flash socket (reserved for OEM project)
Power Specification DC 12V;DC8-40V
Working Environment
Temperature Operating: -10°C to 50°C ;Storage -20°C to 60°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Shock Operating 16G, 11ms & Non-operating 4G, 20ms (with
Dimensions
Mounting Type Embedded Installation
Mechanical dimensions 315.6 x 254.6 x 64mm
Weight (Net) 5.5 kgs/ piece
Drawings Please contact us for details

Features and Advantages

1,Fanless passive cooled mainboard with low consumption

2, 4G RAM, 64G SSD for memory


3. 5 wire Resistive touchscreen makes the touch sense perfectly


4. Mounting holes on base bottom for tabletop security; VESA mounting on the backside


5. 12.1’’resistive Touch pc hardware for industrial terminals, Automatic applications, KIOSKs etc.

6. Wide voltage 8v-30V adapter for different applications.
