Flexbile HDMI 300 Nits 21.5 Open Frame Capacitive Monitor
Flexbile HDMI 300 Nits 21.5 Open Frame Capacitive Monitor
Flexbile HDMI 300 Nits 21.5 Open Frame Capacitive Monitor
Flexbile HDMI 300 Nits 21.5 Open Frame Capacitive Monitor
Specifications
Brand Name :
AXNEW
Model Number :
AXD-21OPN1P1-T2P b
Certification :
CE FCC ROHS
Place of Origin :
China
MOQ :
2 pcs
Price :
US$200-270/pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
800 pcs/month
Delivery Time :
7-8 working days
Packaging Details :
2 pcs/carton
size :
21.5 inch
Resolution :
1920x1080
Brightness :
300nits
Signal inputs :
vga HDMI, DVI optionals
Mounting ways :
vesa ,right and left edge mount holes
Feature :
slim, flexbile, anti-vandal, full hd
Touch type :
G+G capacitive touch with eeti controller
Description

21.5 Inch Open Frame Capacitive Monitor Digital signal inputs with slim design

Display Specifications
Display 21.5" Open Frame touch monitor (LED)
Model Name AXD-21OPN1P1-T2P b
Active Display Area (mm) 476.64 (H)x268.11(V)
Pixel Pitch (mm) 248.25 (per one triad) x 248.25
Resolution (Pixel) WSXGA (1920X1080)
Brightness (CD/m^2) 300cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 178/178
Power consumption 25.71 W typical, normal operation
Touch Screen
Type Pro-Capacitive Touch
Construction G+G cover glass
Hardness 6H
Chipset EETI
Support O.S multi touch for Linux,andriod, winxp/7/8/10, etc
Communication port USB for touch connection only, RS232 options
Connectors
OSD Control On the back side

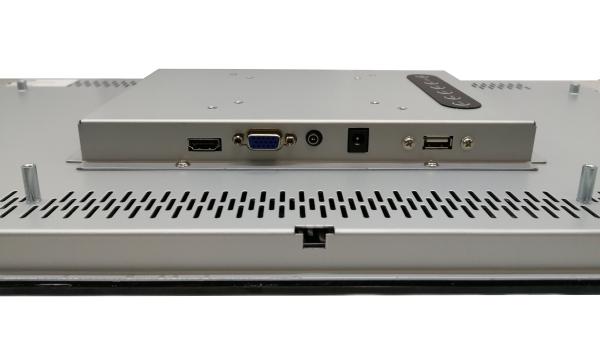

I/O Connectors 1x12v DC Jack,1XVGA,1xHDMI; 1x AV
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel metal housing
Dimensions 546.2x 323.4x 42.0(mm)
Mounting Embedded ,fixing holes on the back frame
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature 0~50℃
Storage Temperature -20~60℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 21.5" Open frame FHD capacitive monitor with dvi vga input and power adapter

Features and Advantages

1. 21.5'' New and Industrial A grade perfect panels with stable supply


2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed


3. HDMI control board supports the displays working 24 hours


4. Professional and industrial hardware and parts to guarantee its working normally in rough environment


5. VGA HDMI DVI Signal inputs; capacitive touch screen with EETI chipset controller


6. 21.5 inch wide screen open frame monitor for application control , advertising player ,campus and industrial terminal, etc
