Specifications
Brand Name :
axnew
Model Number :
AXD-15OPN1P3-V2W
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
5 Pieces
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
1000 pieces/month
Delivery Time :
10-15 working days
Packaging Details :
4 Pcs /Carton with firm foam
Screen Size :
15.6
Pixel :
1366x768
Contrast Ratio :
700:1
Brightness :
350nits
Input signal :
VGA/DVI
Viewing Angles :
160(H)/140(V)
Description
Display Specifications

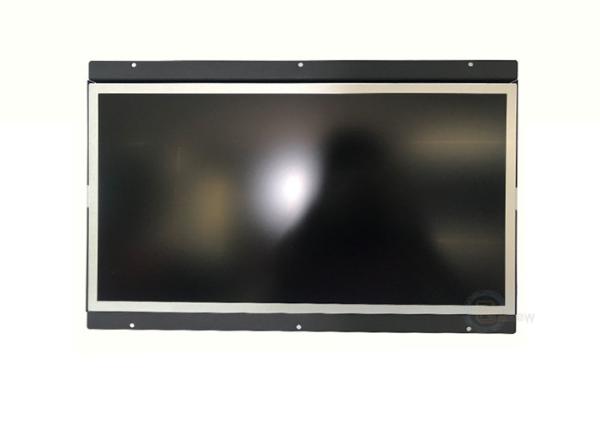

Display 15.6" Color TFT Open Frame LCD Monitor
Model Name AXD-15OPN1P3-V2W
Active Display Area (mm) 344.16(H)x193.59(V)
Pixel Pitch (mm) 0.1795(H)x0.1795(V)
Resolution (Pixel) 1366x768
Brightness (CD/m^2) 350nits
Contrast Ratio 700:1
Viewing Angle (CR >=10) 160/140
Power consumption 10.6 W typical, normal operation
Touch Screen no touch in this case
OSD Control On the back side

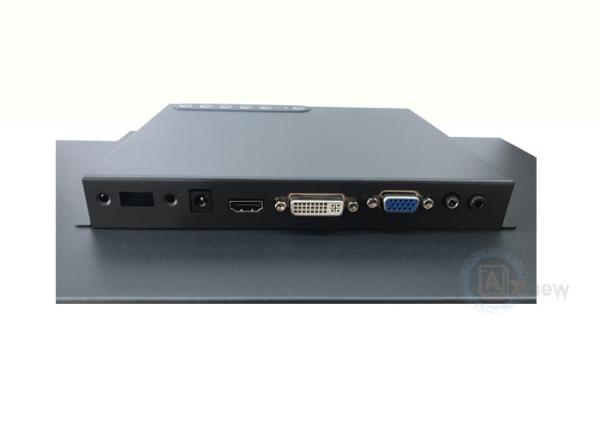

I/O Connectors 1x12v,1XVGA,1xDVI, 1xHDMI
Power Input DC 12V, 4A 48W
Mechanical Specifications
Construction Steel housing & black Color, anti-vandal
Dimensions 397.0x 25270.0x43.0(mm)
Mounting Embedded ,up and down fixing holes, vesa75x75;100x100 Wall Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70℃
Storage Temperature -20~70℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 15.6” open frame lcd monitor with HDMI port

Features and Advantages
1. 15.6 inch open frame lcd monitor adopts1920x1080 Industrial A grade perfect panels
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours, vga hdmi, DVI signal inputs
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. 15.6 inch open frame lcd could be installed for kiosks, Automatic equipments , industrial application,etc

6, it is one ecomonic design , can be installed the touch screen by customers themself.

Full HD 15.6 Inch Open Frame LCD Monitor 1366x768 For Kiosks
