10.4 D2550 Fanless 1024x768 Industrial Touch Screen PC HDMI
10.4 D2550 Fanless 1024x768 Industrial Touch Screen PC HDMI
10.4 D2550 Fanless 1024x768 Industrial Touch Screen PC HDMI
10.4 D2550 Fanless 1024x768 Industrial Touch Screen PC HDMI
10.4 D2550 Fanless 1024x768 Industrial Touch Screen PC HDMI
10.4 D2550 Fanless 1024x768 Industrial Touch Screen PC HDMI
10.4 D2550 Fanless 1024x768 Industrial Touch Screen PC HDMI
10.4 D2550 Fanless 1024x768 Industrial Touch Screen PC HDMI
10.4 D2550 Fanless 1024x768 Industrial Touch Screen PC HDMI
10.4 D2550 Fanless 1024x768 Industrial Touch Screen PC HDMI
Specifications
Brand Name :
axnew
Model Number :
AXD-10PPC-V4N
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
5 Pieces
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
1000 pieces/month
Delivery Time :
10-15 working days
Packaging Details :
5 Pcs /Carton with firm foam
Screen Size :
10.4 inch
pixel :
1024x768
Contrast Ratio :
350nits
Brightness :
350nits
Input signal :
VGA/DVI
Viewing Angles :
140(H)/120(V)
Monitor type :
Pro-capacitive touch screen
Description

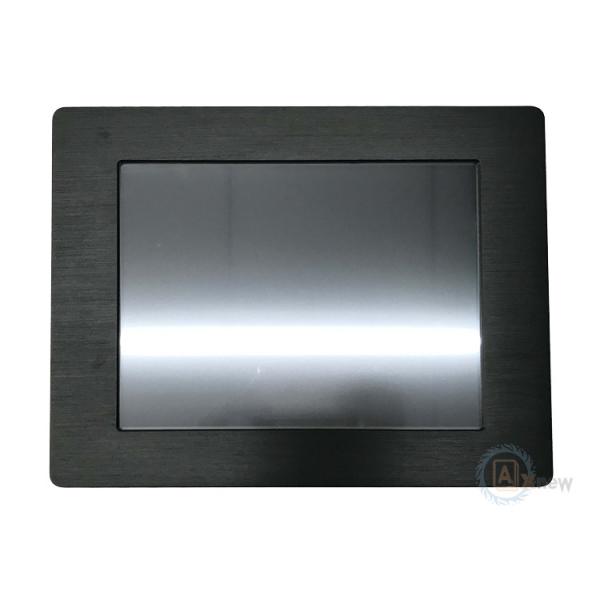

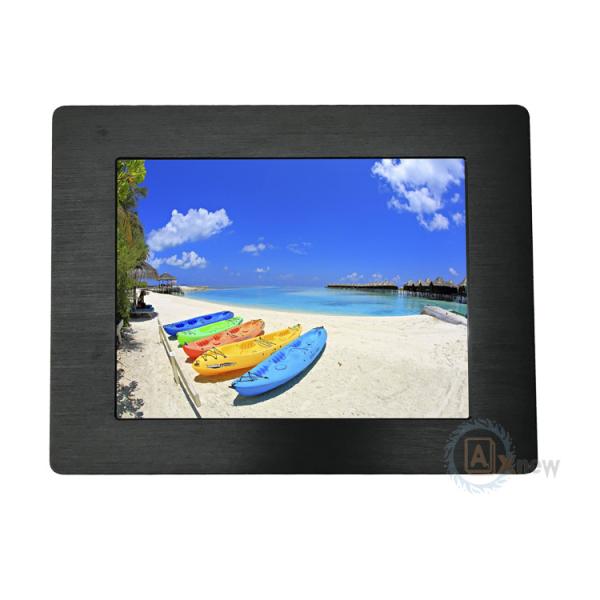

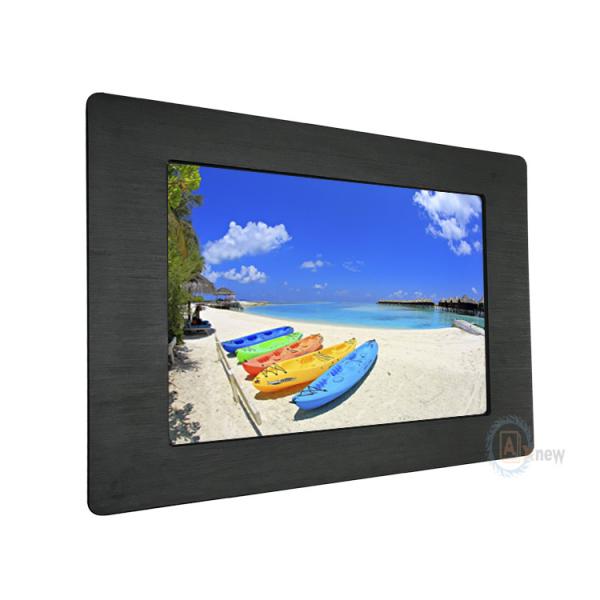

10.4" D2550 Fanless 1024x768 Industrial Touch Screen PC

Panel PC information
Model Number AXD-10PPC-V4N
10.4’’ Industrial touch panel pc
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Touch Panel 5 wire resistive touch panel
Touch response time 8ms (typical)
Optimal (native) Resolution 1024x768
LCD panel Pixel pitch 0.264 x 0.264 mm
LCD panel Colors 16.2 million
LCD panel Brightness 350 cd/m2
LCD panel Response Time 8ms
Contrast Ratio 600:1
Viewing Angle ( Wide )
Horizontal (left/right) ±70° or 140° total
Vertical (up/down) 60°(up), 70°(down) or 130° total
CPU Processor; DDR3 800MHz SDRAM
storage 32G/ 64G SSD

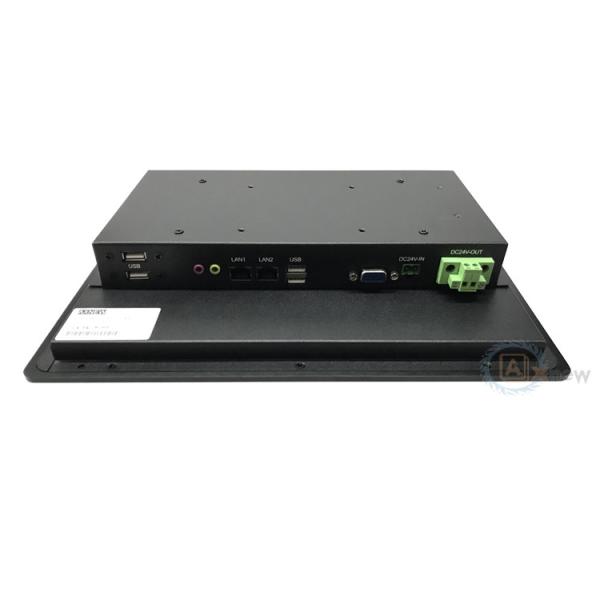

Serial Ports 2x COM ports could be installed if needed.
USB Ports 4x USB external ports ; 6 six USB internal ports
LAN 2x LAN RJ-45 connector
Net 1 x Realtek RTL8111C Gigabit Ethernet controller
DC Power In 1 x DC 3pin connector for 24V
DC Power out 1x DC Phoniex connector for 24 V out
Video Port 1 x HDMI
Watch Dog Timer 1~255 levels reset
Internal Sockets & Connectors 1 x Compact Flash socket (reserved for OEM project)
Power Specification DC 12-24V
Working Environment
Temperature Operating: -20°C to 60°C ;Storage -30°C to 70°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Shock Operating 16G, 11ms & Non-operating 4G, 20ms (with
Dimensions
Mounting Type Embedded Installation
Weight (Net) 5.0 kgs/ piece
Drawings Please contact us for details

Features and Advantages

1.Fanless passive cooled mainboard ATOM D2550 with low consumption

2.4G RAM, 64G SSD for memory
3. 5 wire resistive touchscreen makes the touch sense exactly
4. Mounting holes on base bottom for tabletop security; VESA mounting on the backside
5. 10.4’’industrial Touch pc hardware for industrial terminals, Automatic applications, KIOSKs etc.

6. Could be DC24V in and out , 2xRJ45

7. firm and no holes mechanial design to protect the dust and drops.
