VGA DVI CPT Open Frame Touch Monitor 800x600 With Privacy Film
VGA DVI CPT Open Frame Touch Monitor 800x600 With Privacy Film
VGA DVI CPT Open Frame Touch Monitor 800x600 With Privacy Film
VGA DVI CPT Open Frame Touch Monitor 800x600 With Privacy Film
VGA DVI CPT Open Frame Touch Monitor 800x600 With Privacy Film
VGA DVI CPT Open Frame Touch Monitor 800x600 With Privacy Film
VGA DVI CPT Open Frame Touch Monitor 800x600 With Privacy Film
VGA DVI CPT Open Frame Touch Monitor 800x600 With Privacy Film
Specifications
Brand Name :
Axnew
Model Number :
AXD-12OPN1P1-V2 C
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
5 Pieces
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
1000 pieces/month
Delivery Time :
10-15 working days
Packaging Details :
5 Pcs /Carton with firm foam
Screen Size :
12 inch
pixel :
800X600
Contrast Ratio :
600:1
Brightness :
500nits
Viewing Angles :
160(H)/160(V)
Input signal :
VGA/DVI
Monitor type :
Pro-capacitive touch screen
Description

12 inch CPT Industrial custom Open Frame Monitor VGA DVI with privacy film

Display Specifications
Display 12" Color TFT Industrial Open frame Monitor with privacy film
Model Name AXD-12OPN1P1-V2 C
Active Display Area (mm) 246.0 (H) x 184.5 (V)
Pixel Pitch (mm) 0.307 (H) x 0.307 (V)
Resolution (Pixel) 800x600
Brightness (CD/m^2) 500cd/m^2
Contrast Ratio 600:1
Viewing Angle (CR >=10) 160/160
Power consumption 11.3 W typical, normal operation
Touch Screen projected capacitive Touch
OSD Control On the back side

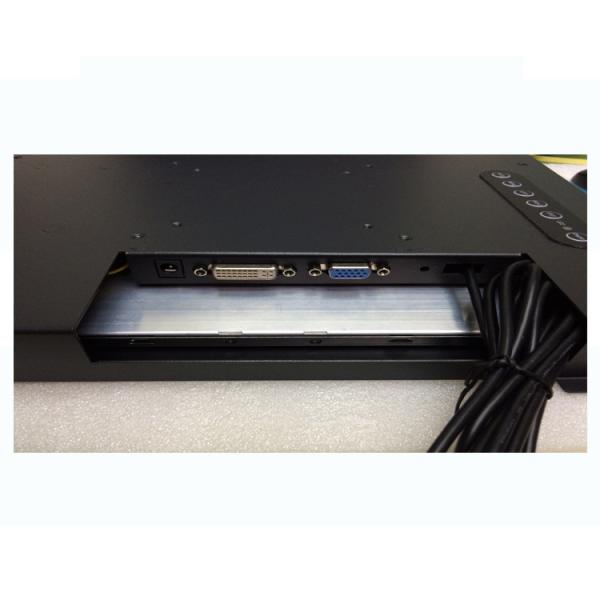

I/O Connectors 1x12v,1XVGA,DVI-D
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Roasted Metal Frame
Dimensions 350.1x 264.1x 50.0(mm)
Mounting Up-down, Left-right fixing holes ,VESA 75x75(100x100)
Wall Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~80℃
Storage Temperature -30~85℃
Rating Facilitate installation of the demolition, solid portfolio
Privacy film Right Side 30+/-5 Degree;Left Side 30+/-5 Degree
Ordering Information 12.1” OP Monitor 500nits with HD VGA input and power adapter
