15'' 1024x768 400cd/m2 Panel Mount Touch Panel I5 64G SSD
15'' 1024x768 400cd/m2 Panel Mount Touch Panel I5 64G SSD
15'' 1024x768 400cd/m2 Panel Mount Touch Panel I5 64G SSD
15'' 1024x768 400cd/m2 Panel Mount Touch Panel I5 64G SSD
Specifications
Brand Name :
OEM
Model Number :
AXD-15PPC-A7 C
Certification :
CE ROHS
Place of Origin :
China
MOQ :
5 units
Price :
US$300-699
Payment Terms :
T/T, Western Union, MoneyGram, D/P
Supply Ability :
1000 units/month
Delivery Time :
5-8 working days
Packaging Details :
1 unit per carton; 5 units /carton
CPU :
I5 3317U Dual Core 1.8G
RAM :
4G
SSD :
64G
USB Ports :
4
COM :
2
Lan :
1 ,could be 2 lan for options
Touch :
Industrial capacitive touch
DC :
12V for standard, 8-30V for options
Description

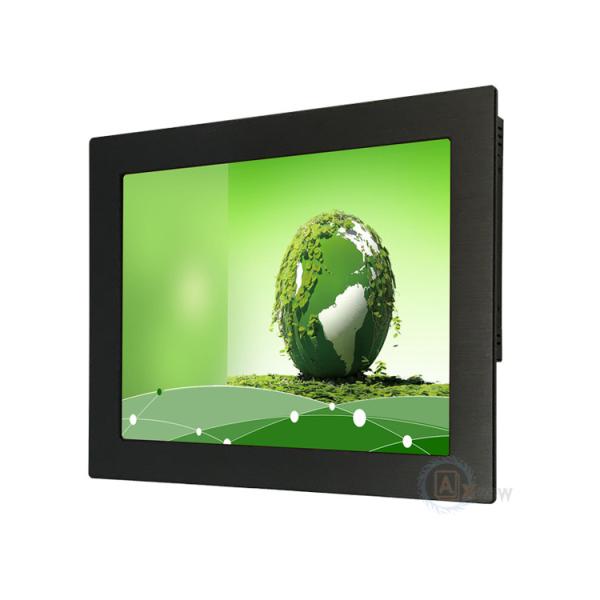

15'' Industrial Panel Mount Touch panel pc I5 Low Consumption super viewing

Panel PC information
Model Number AXD-15PPC-A7C
15’’ Industrial panel mount panel pc
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Touch Panel Industrial Projected-capacitive Flat Screen
Touch response time 10ms (typical)
Optimal (native) Resolution 1024x768
LCD panel Pixel pitch 0.296 x 0.296 mm
LCD panel Colors 16.7million
LCD panel Brightness 400cd/m2
LCD panel Response Time 8ms
Contrast Ratio 1300:1
Viewing Angle ( Wide )
Horizontal (left/right) ±88° or 176° total
Vertical (up/down) 88°(up), 88°(down) or 176° total
CPU Intel® I5-3317U
storage 64G SSD

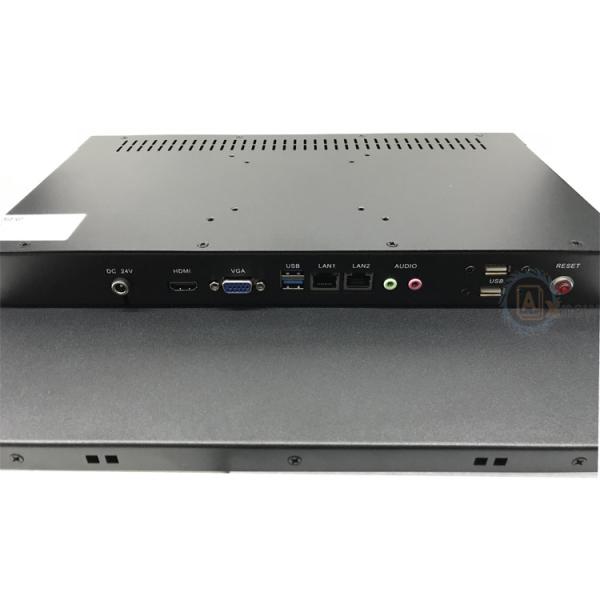

Serial Ports 2x COM ports
USB Ports 3 x USB
LAN 1 x LAN RJ-45 connector
DC Power In 1 x 4-pin connector
Video Port 2X Audio
Other Ports 2x LAN, 1XVGA,1xHDMI,1XLPT
Internal Sockets & Connectors 1 x Compact Flash socket (reserved for OEM project)
Power Specification DC 12V
Working Environment
Temperature Operating: -10°C to 60°C ;Storage -20°C to 70°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Dimensions
Mounting Type Embedded Installation
Mechanical dimensions 355.8 x 287.3 x 62.4 mm
Weight (Net) 6.5 kgs/ piece
Drawings Please contact us for details
