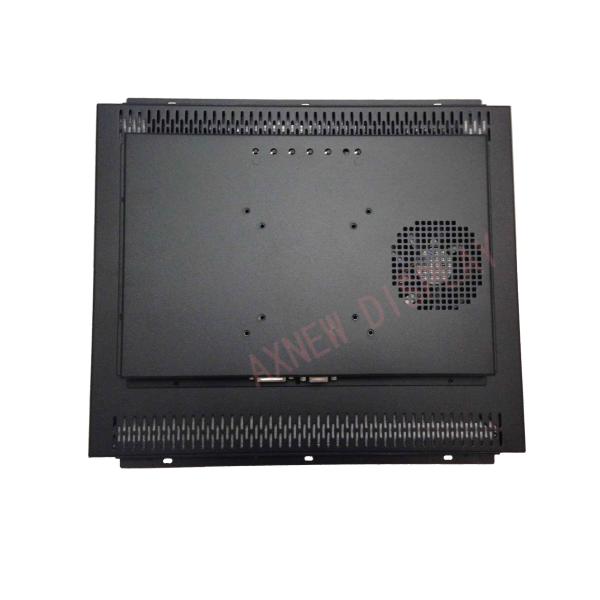

17 Inch 1280x1024 1000nits Dimmable Sunlight Readable Monitor HDMI
17 Inch 1280x1024 1000nits Dimmable Sunlight Readable Monitor HDMI
Specifications
Brand Name :
AXNEW
Model Number :
AXD-17OPN1P1-VH4 b
Certification :
CE/FCC/ROHS/UL/CCC
Place of Origin :
Shenzhen China
MOQ :
5 Pieces
Price :
negotiation
Payment Terms :
Depends on product and order quantity
Supply Ability :
1200 pieces/month
Delivery Time :
10 working days
Packaging Details :
2Pcs /Carton with firm foam
Brightness :
1000cd/m^2
Contrast Ratio :
1000:1
Screen Size :
17 inch
Touch Type :
No touch screen, Resistive/IR touch options
Signal input :
HDMI, VGA in
Operating temp. :
-20~70 degrees
Consumption :
33Walt
Description

17 inch 1280x1024 1000nits dimmable Sunlight readable with HDMI input monitor

Quick Details:


Model: AXD-17OPN1P1-VH4 b

Screen Size:17’’
Screen format: 4:3

Display Resolution(pixel):1280x1024
Contrast Ratio:1000:1

Brightness:1000cd/m^2
Storage temperature : -20℃~70℃

Input signal: VGA HDMI
Power Input: AC100~240 V /DC 12V

Product status: In production

Features and Advantages


1. New and Industrial A grade perfect panels with stable supply


2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed


3. industrial control board supports the displays working 24 hours


4. Professional and industrial hardware and parts to guarantee its working normally in rough environment


5. VGA HDMI


6. 17 inch 1000nits open frame monitor for application control , advertising player ,campus and industrial terminals etc

Display Specifications
Display 17" Color TFT high bright monitor
Model Name AXD-17OPN1P2-VH4 b
Active Display Area (mm) 337.920(H)x270.336(V)
Pixel Pitch (mm) 0.264(H)x0.264(V)
Resolution (Pixel) XGA (1280X1024) 16.2M /6 bit + FRC
Brightness (CD/m^2) 1000cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 160/140
Power consumption 33W typical, normal operation
Touch Screen No touch screen
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,HDMI
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel chassis & black Color
Dimensions 378.5 x 337.0x 42.0(mm)
Mounting Edge fixing holes,Vesa Mounting
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70℃
Storage Temperature -20~75℃
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 17” 1000nits wide temperature with HDMI input and power adapter for outdoor application


Packaging & Delivery

Packing details

1x 17 inch 1000nits sunlight readable Monitor;

Packed in 5 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms

7- working days for stock products after receiving payments; 15 working days for order production

17 Inch 1280x1024 1000nits Dimmable Sunlight Readable Monitor HDMI17 Inch 1280x1024 1000nits Dimmable Sunlight Readable Monitor HDMI17 Inch 1280x1024 1000nits Dimmable Sunlight Readable Monitor HDMI
