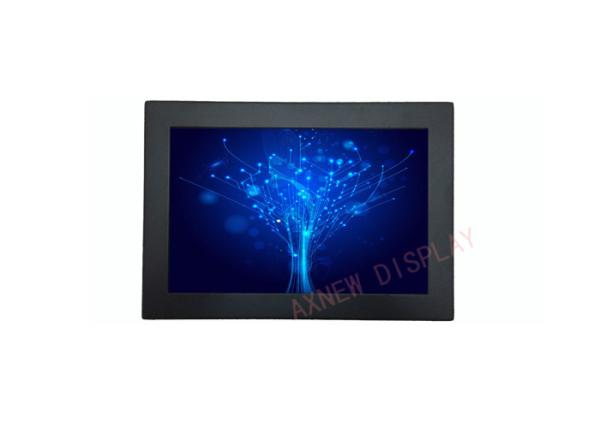

10.4'' 800nits 800X600 Touch Panel PC With I3 Processor
10.4'' 800nits 800X600 Touch Panel PC With I3 Processor
10.4'' 800nits 800X600 Touch Panel PC With I3 Processor
10.4'' 800nits 800X600 Touch Panel PC With I3 Processor
10.4'' 800nits 800X600 Touch Panel PC With I3 Processor
10.4'' 800nits 800X600 Touch Panel PC With I3 Processor
Specifications
Brand Name :
OEM
Model Number :
AXD-10PPC-VH4A
Certification :
CE Rohs
Place of Origin :
China
MOQ :
10 pcs
Price :
US$200-500/PCS
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1500units/month
Delivery Time :
5-7 working days
Packaging Details :
1 pcs/carton; 5 pcs/carton
Name :
10.4 inch high Brighntess multi touch panel pc
Brightness :
800nits
Touch :
pro capacitive touch
Processor :
I3
Memory :
4G RAM
SSD :
64G
Description

10.4'' 800nits 10 Points Capacitive Multi Touch Panel PC With I3 Processor

Panel PC information
Model Number AXD-10PPC-VH4A
10.4’’ High Brightness Mulit touch panel pc
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Touch Panel capacitive touch panel
Touch response time 8ms (typical)
Optimal (native) Resolution 800X600
LCD panel Pixel pitch 0.264 x 0.264 mm
LCD panel Colors 16.2 million
LCD panel Brightness 800cd/m2
LCD panel Response Time 8ms
Contrast Ratio 500:1
Viewing Angle ( Wide )
Horizontal (left/right) ±70° or 140° total
Vertical (up/down) 60°(up), 70°(down) or 130° total
CPU I3 Processor; DDR3 800MHz SDRAM
storage 64G SSD
Serial Ports 2x COM ports could be installed if needed.
USB Ports 4x USB external ports ; 6 six USB internal ports
LAN 1x LAN RJ-45 connector; could be two for options
Net 1 x Realtek RTL8111C Gigabit Ethernet controller
DC Power In 1 x DC Jack 2.5
Video Port 1 x HDMI
Watch Dog Timer 1~255 levels reset
Internal Sockets & Connectors 1 x Compact Flash socket (reserved for OEM project)
Power Specification DC 12V;DC8-40V for options
Working Environment
Temperature Operating: -10°C to 60°C ;Storage -20°C to 70°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Shock Operating 16G, 11ms & Non-operating 4G, 20ms (with
Dimensions
Mounting Type Embedded Installation
Weight (Net) 5.0 kgs/ piece
Drawings Please contact us for details

Features and Advantages

1, High brightness of 10.4inch industrial LCD panels with Wide temperature

2, 4G RAM, 64G SSD for memory


3. capacitive touchscreen makes the touch sense perfectly


4. Mounting holes on base bottom for tabletop security; VESA mounting on the backside


5. 10.4’’industrial Touch pc hardware for industrial terminals, Automatic applications, KIOSKs etc.

10.4'' 800nits 800X600 Touch Panel PC With I3 Processor

10.4'' 800nits 800X600 Touch Panel PC With I3 Processor
