1037U Processor 300cd/m2 17 10ms Multi Touch Panel PC
1037U Processor 300cd/m2 17 10ms Multi Touch Panel PC
1037U Processor 300cd/m2 17 10ms Multi Touch Panel PC
1037U Processor 300cd/m2 17 10ms Multi Touch Panel PC
Specifications
Brand Name :
AXNEW
Model Number :
AXD-17PPC-V3C
Certification :
CE,ROHS
Place of Origin :
Shenzhen China
MOQ :
10 pieces
Price :
US$300-400/PCS
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
1000 pieces/month
Delivery Time :
10-15 working days
Packaging Details :
2 Pcs /Carton with firm foam
Feature :
HD|slim
Input signal :
VGA/HDMI/RS232/USB
Panel PC type :
Backlight|Capacitive Multi-touch
Power Input :
12V
Product name :
17'' Multi Touch Panel PC
response time :
10ms
CPU :
1037U
RAM :
2G
Description

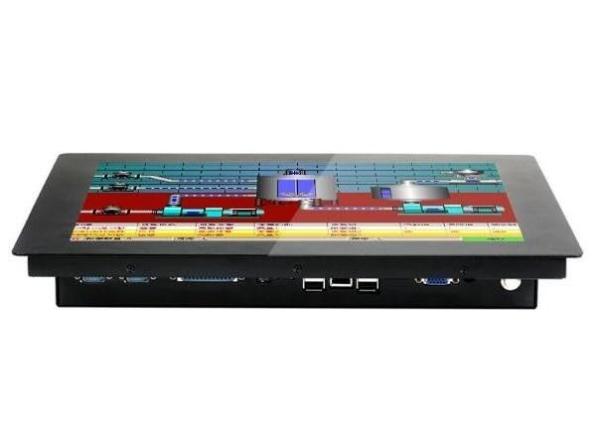

17 inch Dual Core 1037U Processor Multi Touch Panel PC

Stainless Steel Fanless 17 inch Resistive Industrial Touch Panel PC 1037U Dual Core Wide Temperature,

which is widely used to mount into the Automatic equipments, Gas Station ,Advertising , vending embedded system, Kiosk application etc.

Features and Advantages


1. Fanless Design; Ultra Slim and Compact Mechanical Design
2. High Luminance LCD Panel
3. Intel® Celeron 1037u Dual Core 1.8GHZ
4. 17 "1280X1024 Resolution Color TFT LCD Display
5. Fully IP54 Compliant Stainless Steel Chassis
6. Supports Wide Range DC Power Input (12V)

Specifications datasheet

Panel PC information
Model Number AXD-17PPC-V3C
17’ Multi panel pc
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Touch Panel Industrial capacitive touch panel
Touch response time 10ms (typical)
Optimal (native) Resolution 1280x1024
LCD panel Pixel pitch 0.296 x 0.296 mm
LCD panel Colors 16.7 million
LCD panel Brightness 300cd/m2
LCD panel Response Time 8ms
Contrast Ratio 800:1
Viewing Angle ( Wide )
Horizontal (left/right) ±80° or 160° total
Vertical (up/down) 85°(up), 85°(down) or 170° total
CPU Intel® Celeron 1037U Dual Core 1.86GHz
storage 16 G SSD ( optional)
Serial Ports 2 x COM ports
USB Ports 4 x USB
LAN 1 x LAN RJ-45 connector
DC Power In 1 x 4-pin connector
Video Port 2X Audio
Other Ports 2x LAN, 1XVGA,1xHDMI,1XLPT
Internal Sockets & Connectors 1 x Compact Flash socket (reserved for OEM project)
Power Specification DC 12V
Working Environment
Temperature Operating: -10°C to 60°C ;Storage -20°C to 65°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Dimensions
Mounting Type Embedded Installation
Mechanical dimensions 386.5 x 318.47 x 57.7 mm
Weight (Net) 7.5 kgs/ piece
Drawings

Please contact us for details
