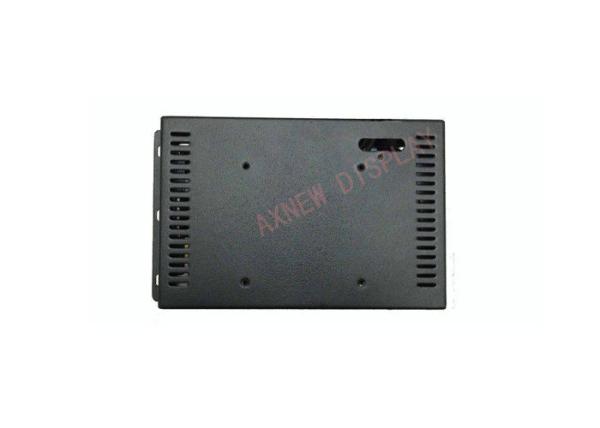

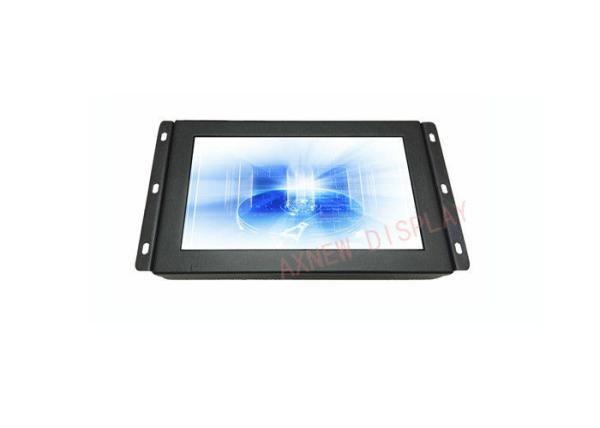

500nits RGB/LVDS 7'' 800x480 Open Frame LCD Monitor with 4mm Capacitive Touch
500nits RGB/LVDS 7'' 800x480 Open Frame LCD Monitor with 4mm Capacitive Touch
500nits RGB/LVDS 7'' 800x480 Open Frame LCD Monitor with 4mm Capacitive Touch
500nits RGB/LVDS 7'' 800x480 Open Frame LCD Monitor with 4mm Capacitive Touch
500nits RGB/LVDS 7'' 800x480 Open Frame LCD Monitor with 4mm Capacitive Touch
500nits RGB/LVDS 7'' 800x480 Open Frame LCD Monitor with 4mm Capacitive Touch
Specifications
Brand Name :
AXNEW
Model Number :
AXD-07OPN1P2-T2 C
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
5 Pieces
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
10000 pieces/month
Delivery Time :
7 working days
Packaging Details :
10 Pcs /Carton with firm foam
Screen Size :
7 inch
Pixel :
800X480
Contrast Ratio :
500:1
Brightness :
500cd/m^2
Input signal :
RGB VGA/DVI/ LVDS/HDMI/AV
Viewing Angles :
140(H)/140(V)
Touch type :
Procapactive touch/ Resistive touch
Features :
Wide screen with slim 7 Inch design
Widescreen :
Yes
Backlight :
LED
Touch Interfaces :
USB/RS232 options
Description

500nits RGB/LVDS 7'' 800x480 Open Frame LCD Monitor with 4mm Capacitive Touch

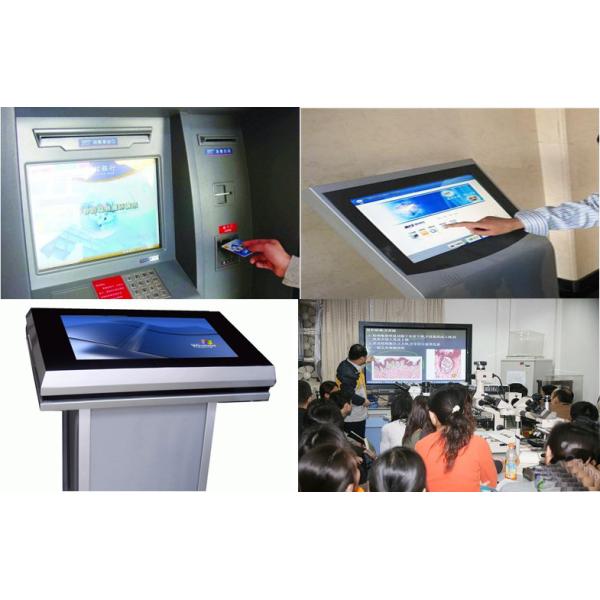

7 inch touch lcd monitor with pro-capacitive touch(USB)​, HDMI/ VGA/ AV input and LED backlight, used for POS, Kiosk, vending machine, Charging pile​,Automatic embedded system etc.

Quick Details:

Model:AXD-07OPN1P2-T2 C

Screen Size:7.0''

Screen format: 16:9 wide

Display Resolution(pixel):800x480

Contrast Ratio:500:1

Brightness: 500cd/m^2

Storage temperature : -30℃~80℃

Input signal: RGBVGA/LVDS/HDMI/AV

Power Input: AC100~240 V/DC 12V

Product status: In production

Touch type: PCAP touch panel

Features:

1. 7.0" LCD with resolution 800 x480

2. Green LED-backlit panel technology

3. Easy to Mount Open Frame,Rugged construction against external impact, metal chassis

4. VESA Mounting Hole Pattern

5. OSD buttons can prevent unnecessary setting changes

6. Standard VGA(RGB) Input (Optional for DVI. HDMI, AV,Custom LVDS cable connection)

7. Complete custom design/solution


Specifications datasheet

LCD monitor information

Model Number

AXD-07OPN1P1-T2 C

7’’ Open Frame Touch LCD Monitor

Type

7 “ TFT Active Matrix LCD with LED Backlight

Active Display Area(mm)

154.08 (H) x 85.92 (V)

Pixel Pitch(mm)

0.0642 (H) x 0.1790 (V)

Resolution

800 x 480

Contrast Ratio

500:1 (typ.)

Display Color

16.7 M colors

Brightness

500(Typ)

Viewing Angles

140(H);140(V)

Response Time

10ms/15ms


Environmental Temperature

Operating Temperature

-30℃～80℃

Storage Temperature

-30℃～85℃


Power Specification

Voltage Consumption

AC 100~240V,Universal,±10% ; AC/DC 12V4A

5.3W typical, normal operation


Touch Screen Optional

G+G cover Glass

touch panel type

Pro-capacitive touch glass with eeti chipset

Touch interface

USB

Transmittance

>=85%

Input voltage

less than 10V

working temperature

-30～80℃

touch kits

>=50,000,000 times in one position


Dimensions

Holes fixings

Vesa mounting 75x75/ fixing holes on the right/left

Mechanical dimensions

208mmx124mmx31mm

Drawings

Please contact us for details

Our Services:

1.Powerfull Research&Development Experience on every kind of touch monitors

2.OEM&ODM Ability

3.Strict QC TEST Control by axnew

4.EASY & FAST Communicate

5.Responsible After Servic​e

Packaging & Delivery

Packing details

1x 7 inch Industrial Touch Screen Monitor;

Packed in 10 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power

adapter

Delivery terms

7- working days for stock products after receiving payments; 15 working days for order production
