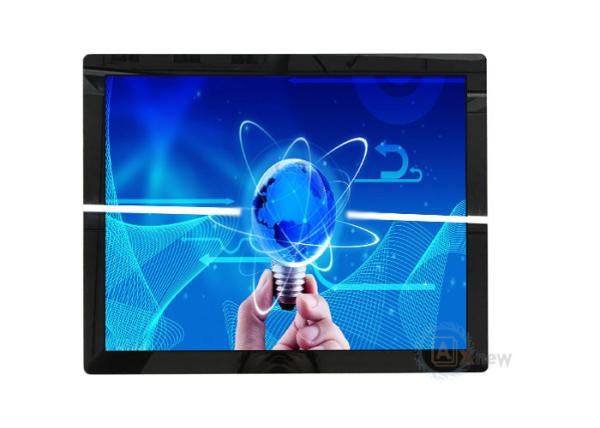

Full HD 15.6'' IP65 Capacitive Touch Monitor HDMI VGA Video Inputs With Display Port
Full HD 15.6'' IP65 Capacitive Touch Monitor HDMI VGA Video Inputs With Display Port
Full HD 15.6'' IP65 Capacitive Touch Monitor HDMI VGA Video Inputs With Display Port
Full HD 15.6'' IP65 Capacitive Touch Monitor HDMI VGA Video Inputs With Display Port
Specifications
Brand Name :
AXNEW
Model Number :
AXD-15OPN1P2-T2 (VGA/DVI)
Certification :
CE FCC CCC ROHS
Place of Origin :
China
MOQ :
10 pieces
Price :
US$300-500/pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2500pcs/month
Delivery Time :
5-8 working days
Packaging Details :
5 pcs/carton
Name :
15.6 inch Industrial Capacitive touch monitor
Resolution :
1920x1080
Brightness :
400nits
Wide viewing angle :
80/80/75/75 ( 160/150)
Operating Temp. :
-20-70 degrees
LED backlight :
50,000 hours (min)
Touch type :
projection capacitive touch with eeti chipset
Protective glass :
2mm anti-vandal with 6H hardness
Front treatment :
IP65 sealing treatment
Signal inputs :
DVI;VGA, DP, HDMI, AV
Description

Full HD 15.6'' IP65 Capacitive Touch Monitor with Display port, HDMI, VGA video inputs

Display Specifications
Display 15.6" Color TFT Capacitive touch Monitor
Model Name AXD-15OPN2P3-V6
Active Display Area (mm) 344.16(H)x193.59(V)
Pixel Pitch (mm) 0.1795(H)x0.1795(V)
Resolution (Pixel) 1920x1080
Brightness (CD/m^2) 400nits
Contrast Ratio 800:1
Viewing Angle (CR >=10) 170/160
Power consumption 10.6 W typical, normal operation
Touch Screen Pro-Capacitive touch panel( USB Controller)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,1xDisplay port, 1xHDMI
Power Input Aviation Plug 12V, 4A 48W
Mechanical Specifications
Construction Steel housing & black Color, anti-vandal
Dimensions 397.0x 25270.0x43.0(mm)
Mounting Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70℃
Storage Temperature -30~70℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 15.6” LCD with 2mm anti-vandal capacitive touch with display port Input



Features and Advantages


1. 1920x1080 15.6 New and Industrial A grade perfect panels , with super viewing angle, high brightness up to 400nits.
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours, display port , hdmi, DVI signal inputs
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. Video and vga interfaces

6. Projection capacitive touch with anti-vandal glass, could be 3mm/4mm/6mm, eeti chipset witout any interference.
7. 15.6 inch capacitive touch with flat true design, with IP65 treatment , is new and popular

touch technology for Medical industry , Automatic equipments etc
