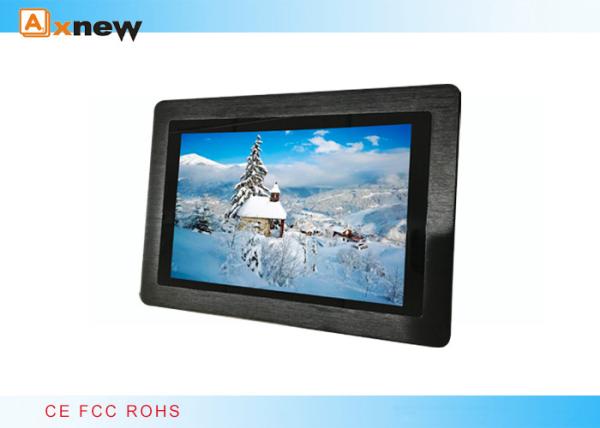

Waterproof IP55 Industrial Touch Panel PC 10 Inch 1280X800 With J1900 NM10 Chipset
Waterproof IP55 Industrial Touch Panel PC 10 Inch 1280X800 With J1900 NM10 Chipset
Specifications
Brand Name :
AXNEW
Model Number :
AXD-10OPPC-V2A8
Certification :
CE.ROHS
Place of Origin :
Shenzhen China
MOQ :
10 units
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
1200 pieces/month
Delivery Time :
7 working days
Packaging Details :
5 Pcs /Carton with firm foam
Brightness :
350cd/m^2
Contrast Ratio :
800:1
Pixel :
1280X800
Screen Size :
10.1 inch
Application :
industrial|Kiosk|Medical device
Feature :
HD|slim|thin|high definition
Panel Type :
TFT
Product name :
Fanless capacitiveTouch Panel PC
Technology :
IPS;IP55 treatment on bezel
Voltage :
12V or 24 V optional
Description

10 inch Waterproof IP55 Front Industrial Touch Panel PC with J1900 NM10 chipset

Panel PC information
Model Number AXD-10OPPC-V2A8
10’’ Fanless industrial Touch pc
Case/Bezel Color Black
TFT Type IPS LCD with LED backlight
Aspect ratio 16:10
Useful Screen Area 220.6 mm x 139.6 mm
Touch Panel Industrial capacitive Flat Screen with eeti chipset
Touch response time 10ms (typical)
Touch PC Dimensions 281x 200x46 mm
Optimal (native) Resolution 1280 x 800
LCD panel Pixel pitch 0.1695 x 0.1695 mm
LCD panel Colors 262K/16.7 million
LCD panel Brightness 350 cd/m2
LCD panel Response Time 25 ms
Contrast Ratio 800:1
Viewing Angle ( Wide )
Horizontal (left/right) ±85° or 170° total
Vertical (up/down) 85°(up), 85°(down) or 170° total
Output Interface COM/HDMI type/ Audio/Mic
Input Interface USB*3
Net Internet LAN
Watch Dog Technology Support
Power Specification External AC to DC power brick
input: +12VDC ±5%,4.0 A; DC Jack (2.5); DC 24V 3Pin phoenix input
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 36W max
ECM (Embed Computer Module)

Intel® processor J1900 (1.9GHz + NM10 Chipset);

SSD: 64G;Rom:4G(DDR3,max6G);

Operation System:Win7/10/Vista/Linux
Temperature Operating: -20°C to 60°C ;Storage -20°C to 70°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions 490 x 440 x340 mm (Five pieces in one )
Weight (approx.) Actual: 11kg ;Shipping: 15kg
Dimensions
Holes fixings Clamp mount on sides
Mechanical dimensions 281x 200x46mm
Drawings Please contact us for details

Waterproof IP55 Industrial Touch Panel PC 10 Inch 1280X800 With J1900 NM10 Chipset
