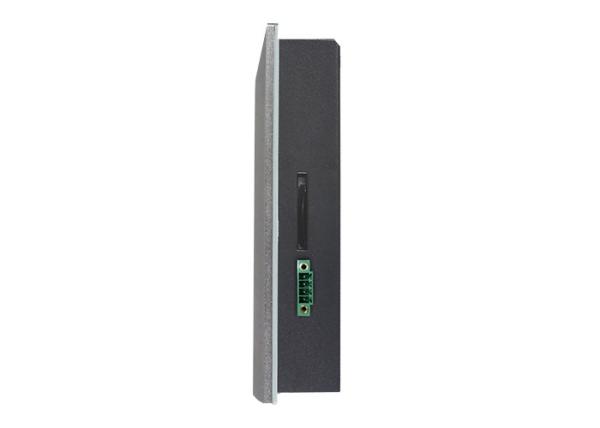

12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
Specifications
Brand Name :
FLEXEM
Model Number :
FE4121X-B
Certification :
CE
Place of Origin :
ShenZhen
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
12.1" 4:3 TFT LCD
Resolution :
1024×768
Colors :
24-bit color
Brightness :
370cd/㎡
Ethernet :
10M/100M
SD Card :
Supporting
Description

Isolated power supply 12.1 inch 1024×768 high resolution metal HMI without logo

* Aluminum enclosure, low cost, high reliability.
* The main board is with spray coating treatment, adapt to harsh industrial environment.
* High resolution, high brightness, LED backlight.
* Totally new configuration software, rich gallery and powerful function.

USB Port USB Host 2.0*1 ,USB Device2.0*1
Power Protection Isolated Power Supply,Protected From Thunderstrike And Surging
Shell Material Front Cover Made By Aluminum.and The Surface With Hard Oxide Treatment:The Back Cover Is Made Of Galavanized Sheet,and The Surface Is With Dry Spray Treatment
Input Power DC 24V, Input Range:DC 18V~28V
Operating Temperature -20~70℃
Dimension 310mm×240mm×48.5mm

1. Power Terminals
Pin1 DC24V 12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) 12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) 12.1 Inch Industrial Monitor PC Touch Screen 1024×768 High Resolution
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
