Specifications
Brand Name :
FLEXEM
Model Number :
FE4070CEA
Certification :
CE
Place of Origin :
ShenZhen
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
7" TFT LCD
Resolution :
800×480
Colors :
24-bit color
Brightness :
360cd/㎡
Download Project :
U-Disk/USB Device/SD Card/Ethernet
Description

Descriptions:

* 7" 800×480 TFT LCD.

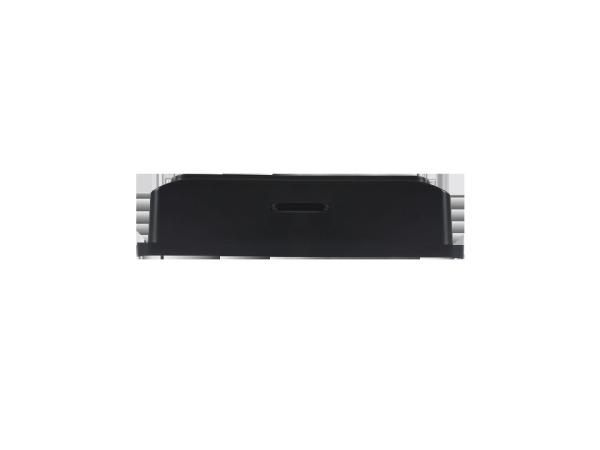

* ABS+PC, plastic enclosure and with only 38mm thickness.
* Industrial Isolated Power Supply module, 4 Serial Ports.
* The mainboard is with spray coating treatment, adapt to harsh industrial environment.

Input PowerDC 24V, Input Range:DC 18V~28V
Power ProtectionIsolated Power Supply,Protected From Thunderstrike And Surging
Shell MaterialABS
Operating Temperature0~50℃
Dimension204mm×145mm×44.5mm

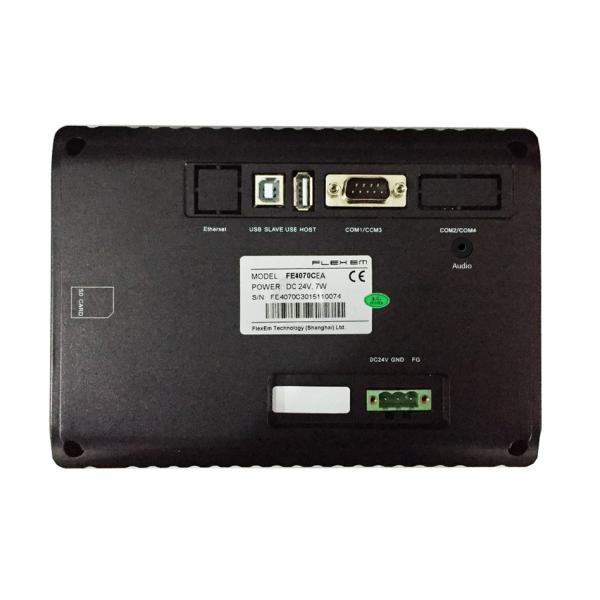

1.Power Terminals
Pin1DC24VHigh Brightness Industrial Touch Screen Panel Mount 7 Inch 360cd/㎡
Pin20V
Pin3FG
2.COM1/COM3
Pin1Rx-(B) High Brightness Industrial Touch Screen Panel Mount 7 Inch 360cd/㎡
Pin2RxD_PLC (COM1 RS232)
Pin3TxD_PLC (COM1 RS232)
Pin4Tx-
Pin5GND
Pin6Rx+(A)
Pin7RxD_PLC(COM3 RS232)
Pin8TXD_PLC(COM3 RS232)
Pin9Tx+
3.COM2/COM4
Pin1Rx-(B) High Brightness Industrial Touch Screen Panel Mount 7 Inch 360cd/㎡
Pin2RxD_PLC (COM2 RS232)
Pin3TxD_PLC (COM2 RS232)
Pin4Tx-
Pin5GND
Pin6Rx+(A)
Pin7RxD_PLC(COM4 RS232)
Pin8TXD_PLC(COM4 RS232)
Pin9Tx+
