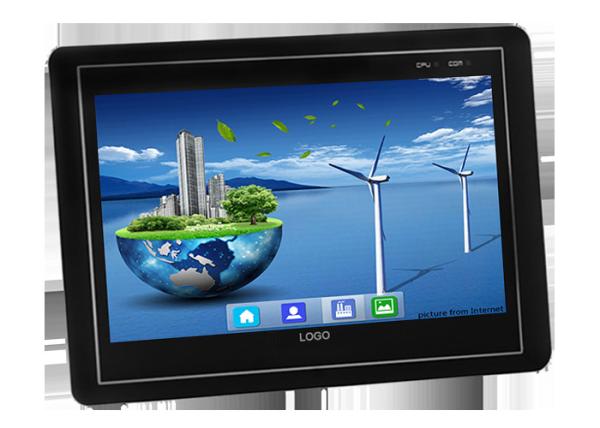

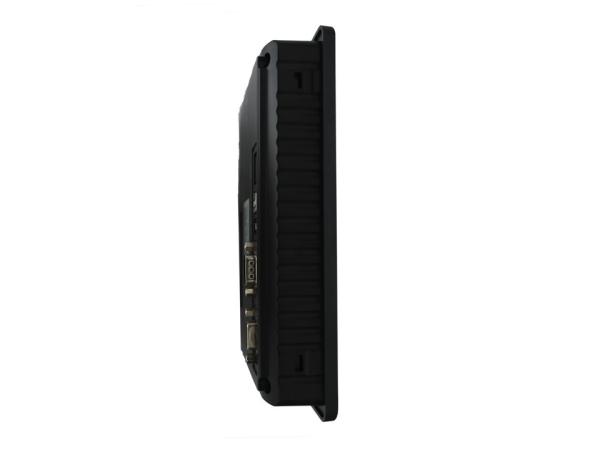

7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
Specifications
Brand Name :
FLEXEM
Model Number :
OEM-FE4070IE
Certification :
CE
Place of Origin :
ShenZhen
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
7" TFT LCD
Resolution :
800×480
Brightness :
360cd/㎡
CPU :
600MHz ARM Cortex-A8
Shell Material :
ABS
Dimension :
204mm×145mm×44.5mm
Description

Descriptions:

* 7" 800×480 TFT LCD.


* ABS+PC, plastic enclosure and with only 38mm thickness.


* Industrial Isolated Power Supply module, 4 Serial Ports.


* The mainboard is with spray coating treatment, adapt to harsh industrial environment.

Specification:

Memory 128MB Flash +128MB DDR3
Download Project U-Disk/USB Device / SD Card/ Ethernet
Input Power DC 24V, Input Range:DC 18V~28V
USB Port USB Host 2.0*1 ,USB Device2.0*1
Power Consumption <10W
Operating Temperature 0~50℃

1.Power Terminals
Pin1 DC24V 7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) 7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) 7 Inch Industrial TFT LCD HMI Display Touch Screen With 800×480 Resolution
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
