9.7 Inch Projected Capacitive Touch Screen HMI Multi Touch High Contrast Ratio
9.7 Inch Projected Capacitive Touch Screen HMI Multi Touch High Contrast Ratio
9.7 Inch Projected Capacitive Touch Screen HMI Multi Touch High Contrast Ratio
9.7 Inch Projected Capacitive Touch Screen HMI Multi Touch High Contrast Ratio
9.7 Inch Projected Capacitive Touch Screen HMI Multi Touch High Contrast Ratio
9.7 Inch Projected Capacitive Touch Screen HMI Multi Touch High Contrast Ratio
Specifications
Brand Name :
FLEXEM
Model Number :
FE5097X
Certification :
CE
Place of Origin :
Shenzhen
Packaging Details :
Carton
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
1-7 business days after payment confirmed
Supply Ability :
5000 pcs/week
Display :
9.7'' 4:3 TFT LCD, full view
Resolution :
1024×768
Colors :
24-bit Colors
Brightness :
350 cd/m²
CPU :
800MHz ARM Cortex A8
Memory :
256M Flash+256M DDR3
Description

Metal Capacitive HMI FE5097X 9.7 inch TFT LCD high resolution multi-touch capacitive HMI

Description:

* Projected capacitive, multi-touch Glass+Glass touch screen.

* 9.7 inch 1024*768 IPS LCD, high brightness, high contrast ratio, full viewing angle.

* Aluminum panel, metal frame, exquisite and metallic appearance, with only 31mm thickness.

* Industrial isolation power supply, spray coating treatment and applicable to various harsh environment.

* SD card Supporting.

* USB Device 2.0, high speed software downloading.

* USB Host: Supporting USB Disk/USB Keyboard/Mouse expanded device etc.

* Complied with CE.

Specification:

Ethernet: 10M/100M Ethernet
Power Protection: Protected From Thunderstrike And Surging , Isolated Power Supply
Shell Material: Front Cover Made By Aluminum, And The Surface With Hard Oxide Treatment; Back Made By Stell And The Surface With Baking Finish Treatment
SD Card: Supporting
Operating Temperature: -20～70℃
Panel Cutout: 230mm×180mm
Weight: About 1100g

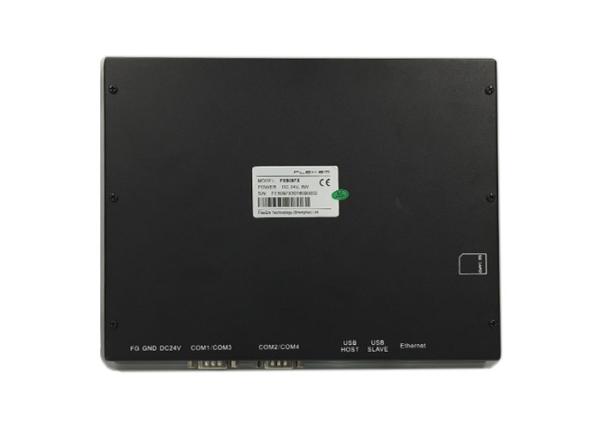

1.Power Terminals
Pin1 DC24V 9.7 Inch Projected Capacitive Touch Screen HMI Multi Touch High Contrast Ratio
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) 9.7 Inch Projected Capacitive Touch Screen HMI Multi Touch High Contrast Ratio
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) 9.7 Inch Projected Capacitive Touch Screen HMI Multi Touch High Contrast Ratio
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
