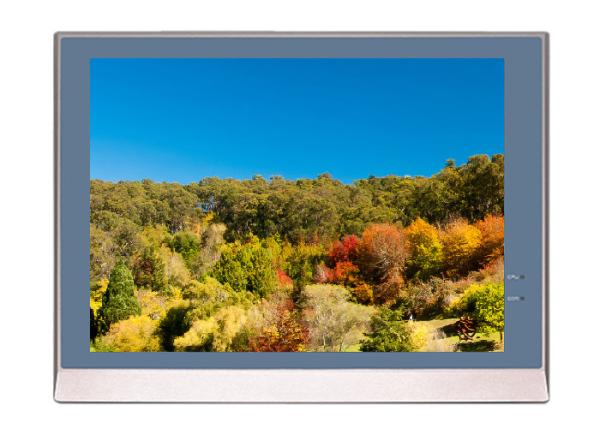

Industrial TFT LCD Resistive Touchscreen HMI , 12.1 Inch LCD Touchscreen Display
Industrial TFT LCD Resistive Touchscreen HMI , 12.1 Inch LCD Touchscreen Display
Specifications
Brand Name :
FLEXEM
Model Number :
FE4121X-C
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
12.1'' 4:3 TFT LCD
Resolution :
1024*768
Colors :
24-bit Colors
Brightness :
370 cd/m²
Operating Temperature :
-20～70℃
Shell Material :
Front cover made by aluminum, and the surface with hard oxide treatment; Back made by stell and the surface with baking finish treatment
Panel Cutout :
291mm×219mm
Weight :
About 2200g
Description

Metal Resistive HMI 12.1 inch TFT LCD high resolution metal HMI


Description:

* 12.1" 1024×768 TFT LCD.

* Metal enclosure and with only 38mm thickness.

* Industrial Isolated Power Supply module, 4 Serial Ports.

* USB Host, Supporting USB Disk/USB Keyboard/Mouse expanded device etc.

* Wide temperature, working under -20~70C.

* Simple dual communication ports, supporting USB Disk/USB.

* Totally new configuration software, rich gallery and powerful function.


Specification:

Ethernet 10M/100M Ethernet
Download Project USB Disk/USB Device/Ethernet/SD Card
Input Power DC 24V , Input Range: DC 18V～28V
SD Card Supporting
Power Consumption < 15W
Power Protection Protected From Thunderstrike And Surging , Isolated Power Supply

1.Power Terminals
Pin1 DC24V Industrial TFT LCD Resistive Touchscreen HMI , 12.1 Inch LCD Touchscreen Display
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) Industrial TFT LCD Resistive Touchscreen HMI , 12.1 Inch LCD Touchscreen Display
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) Industrial TFT LCD Resistive Touchscreen HMI , 12.1 Inch LCD Touchscreen Display
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
