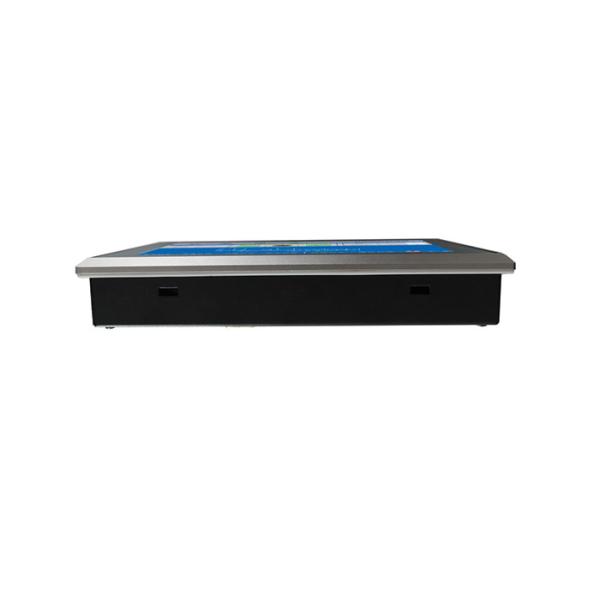

Touch Screen Industrial HMI Panels 7 Inch TFT LCD With USB 2.0 Device Port
Touch Screen Industrial HMI Panels 7 Inch TFT LCD With USB 2.0 Device Port
Specifications
Brand Name :
FLEXEM
Model Number :
FE4070E-C
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
7'' TFT LCD
Resolution :
800×480
Colors :
24-bit color
Brightness :
360 cd/m²
CPU :
600MHz ARM Cortex A8
Description

600MHz ARM8 7 inch metal touch panel HMI with wide operating temperature

Description:

* 7" 800×480 TFT LCD.

* Metal enclosure and with only 38mm thickness.

* Industrial Isolated Power Supply module, 4 Serial Ports.

* USB 2.0 Device Port and high-speed software downloading.

* USB Host, Supporting USB Disk/USB Keyboard/Mouse expanded device etc.

* Wide temperature, working under -20~70C.

* The mainboard is with spray coating treatment, adapt to harsh industrial environment.

Specification:

Input Power DC 24V , Input Range: DC 18V～28V
Operating Temperature -20～70℃
Weight About 800g
Power Down Allowed < 5ms
Panel Cutout 192mm×138mm

1.Power Terminals
Pin1 DC24V Touch Screen Industrial HMI Panels 7 Inch TFT LCD With USB 2.0 Device Port
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) Touch Screen Industrial HMI Panels 7 Inch TFT LCD With USB 2.0 Device Port
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) Touch Screen Industrial HMI Panels 7 Inch TFT LCD With USB 2.0 Device Port
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
