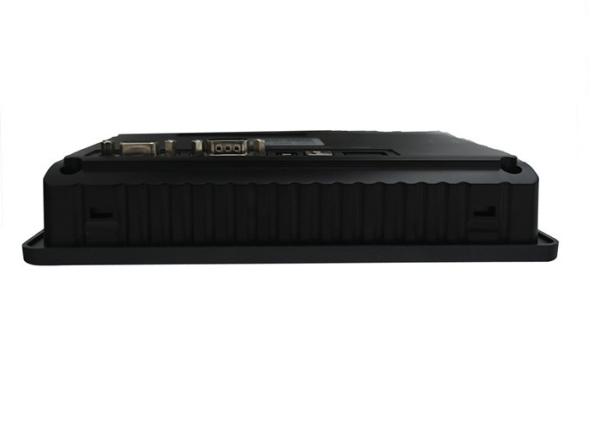

TFT LCD 7 Touch Screen Industrial HMI Touch Panel With Audio Input / Output
TFT LCD 7 Touch Screen Industrial HMI Touch Panel With Audio Input / Output
TFT LCD 7 Touch Screen Industrial HMI Touch Panel With Audio Input / Output
TFT LCD 7 Touch Screen Industrial HMI Touch Panel With Audio Input / Output
TFT LCD 7 Touch Screen Industrial HMI Touch Panel With Audio Input / Output
TFT LCD 7 Touch Screen Industrial HMI Touch Panel With Audio Input / Output
TFT LCD 7 Touch Screen Industrial HMI Touch Panel With Audio Input / Output
TFT LCD 7 Touch Screen Industrial HMI Touch Panel With Audio Input / Output
Specifications
Brand Name :
FLEXEM
Model Number :
FE2070AC
Certification :
ISO
Place of Origin :
Shenzhen
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
7'' TFT LCD
Resolution :
800×480
Colors :
16-bit
Brightness :
450 cd/m²
CPU :
32 Bit 400MHz RISC A8
Memory :
128M Flash 64M DDR2 DRAM
Description

Main Features

1) Armored for severe conditions and have the facility for extensive input/output (I/O) arrangements.
2) Read limit switches, analog process variables and the positions of complex positioning systems.
3) Operate electric motors, pneumatic or hydraulic cylinders, magnetic relays, solenoids, or analog outputs.
4) Industry, Sequential relay control, motion control.
5) Process control, distributed control systems and networking.

Application:

1. Power industry, the elevator industry, parking, automobile, auto ancillary.

2. Feed industry, aluminum smelting machines, refrigeration industry.

3. Steel industry, combustion control systems, non-ferrous metal smelting.

4. Glass industry, construction machinery, textile machinery, water treatment

USB Port 1 USB Host 1.1, 1 USB Device 2.0
Shell Material ABS+PC
Weight About 800g
Operating Temperature 0～50℃
Panel Cutout 192mm×138mm
Audio With Audio Input And Output

1.Power Terminals
Pin1 DC24V TFT LCD 7
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) TFT LCD 7
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) TFT LCD 7
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
