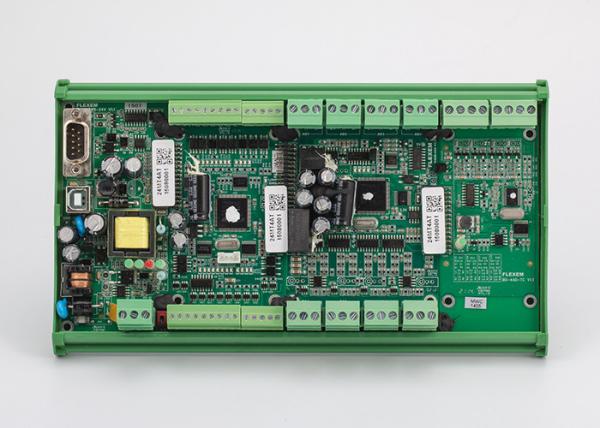

24 Digital I/O PLC Output Module With 4 Way High Speed Surge Immunity Output
24 Digital I/O PLC Output Module With 4 Way High Speed Surge Immunity Output
Specifications
Brand Name :
FLEXEM
Model Number :
FL2N-24MT-CAN
Certification :
ISO
Place of Origin :
Shenzhen
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Digital Input :
12 Input x12，supporting source/drain type
Digital Output :
12 NPN transistor power output x12
CAN port :
Supporting
High-speed Input :
2-way AB input/4-way separate high-speed counting
High-speed Output :
4-way high speed surge immunity output(100kHz x2, 20kHz x2)
Bus Communication :
NA
Description

FL2N-24MT-CAN 4-way high speed surge immunity output 24 Digital I/O Programmable Logic Controller


Description:

* CPU: ARM CortexTM M3 CPU.

* Digital Input: Transistor input, supporting source drain type.

* Digital Output: NPN transistor output.

* High-Speed Input: 2-way AB input/4-way separate high-speed counting.

* High-Speed Output: 4-way high speed surge immunity output(100kHz x2, 50kHz x2)/(single-way output maximum 200kHz).

Specification:

Digital Input 12 Input x12,supporting source/drain type
Analog Input N/A
Digital Output 12 NPN transistor power output x12
User Program Memory 200K Bytes(>10K Bytes)
Involatile Data Memory 2K Bytes
Timer 256 100ms timer x206(0.1~3276.7 seconds),10ms timer x46(0.01~327.67 seconds), 1ms timer x4(0.001~32.767 seconds)
Counter 235
High-speed Interrupt X0-X5 rising and falling edge interruption, 3-way timing interruption

PORT1/PORT2
Pin1 Rx-(B) (PORT2 RS485) 24 Digital I/O PLC Output Module With 4 Way High Speed Surge Immunity Output
Pin2 RxD (PORT1 RS232)
Pin3 TxD (PORT1 RS232)
Pin4 NA
Pin5 GND
Pin6 Rx+(A) (PORT2 RS485)
Pin7 NA
Pin8 NA
Pin9 NA
