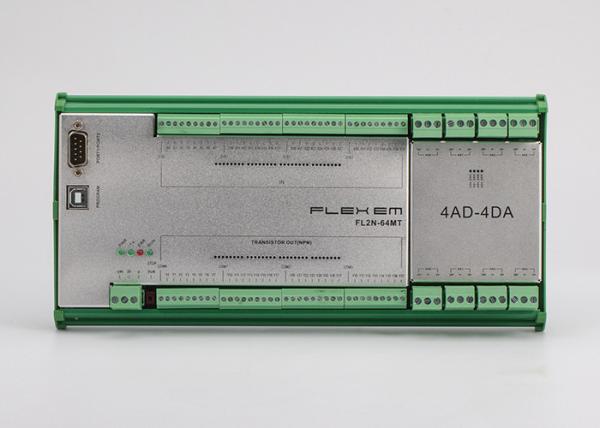

High Execution Efficiency PLC Input Module With 32 NPN Transistor Input 64 Digital I/O
High Execution Efficiency PLC Input Module With 32 NPN Transistor Input 64 Digital I/O
Specifications
Brand Name :
FLEXEM
Model Number :
FL2N-64MT
Certification :
CE
Place of Origin :
Shenzhen
Packaging Details :
Carton
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
1-7 business days after payment confirmed
Supply Ability :
5000 pcs/week
CPU :
ARM Cortex™-M3 CPU
Digital Input :
32 NPN transistor inputx32supporting source/drain type
Input Power :
DC 24V,Input Range:DC 18V～32V
Power Protection :
Isolated Power,protected from thunderstrike and surging
Operating Temperature :
-20～70°C
Storage Temperature :
-30～80°C
Description

32 NPN transistor input expanding IO 64 Digital I/O Programmable Logic Controller PLC

* Coding PLC, ARM processor, high execution efficiency, and fast speed.

* Compatible with the Mitsubishi instruction set, Mitsubishi ladder diagram software can be imported, support C and ladder diagram mixed programming.

* Support up to 5 serial ports(RS485/232) as well as CAN and Ethernet connection, Support USB high-speed download and testing.

* FlexBus expansion bus, expanding IO, analog quantity, temperature module, motor control etc, high performance.


Specification:

Digital Output 32 NPN Transistor Output X32
Timer 256 100ms Timer X206(0.1~3276.7 Seconds),10ms Timer X46(0.01~327.67 Seconds), 1ms Timer X4(0.001~32.767 Seconds)
Programming Language Ladder Diagram/standard C Program (both Can Be Used)
User Program Memory 200K Bytes(>10K Bytes)
Execution Speed 0.1us/1000AWL ON:5us/OFF:0.5us)
Communication Protocol RS232 X1, RS485 X1, Supporting Mitshubish FX2N And Modbus RTU Communication

PORT1/PORT2
Pin1 Rx-(B) (PORT2 RS485) High Execution Efficiency PLC Input Module With 32 NPN Transistor Input 64 Digital I/O
Pin2 RxD (PORT1 RS232)
Pin3 TxD (PORT1 RS232)
Pin4 NA
Pin5 GND
Pin6 Rx+(A) (PORT2 RS485)
Pin7 NA
Pin8 NA
Pin9 NA
