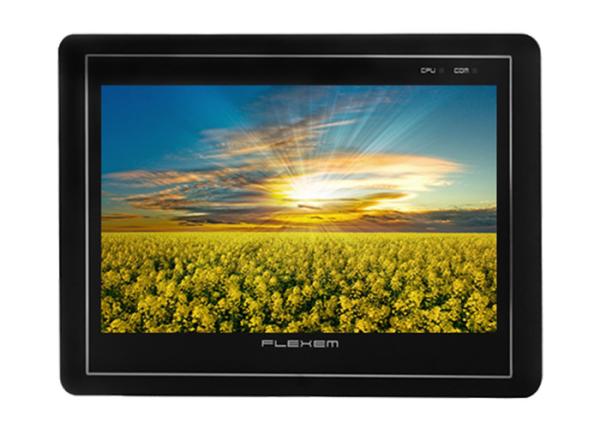

Resistive 7 Inch TFT HMI Touch Screen Panel , Industrial LCD Touchscreen Display
Resistive 7 Inch TFT HMI Touch Screen Panel , Industrial LCD Touchscreen Display
Specifications
Brand Name :
FLEXEM
Model Number :
FE4070C
Certification :
CE
Place of Origin :
Shenzhen
Packaging Details :
Carton
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
1-7 business days after payment confirmed
Supply Ability :
5000 pcs/week
Display :
7'' TFT LCD
Resolution :
800×480
Colors :
24-bit Colors
Brightness :
360 cd/m²
Download Project :
USB Disk/USB Device
Power Consumption :
< 10W
Description

Resistive 7 Inch TFT Hmi Touch Screen Panel , LCD Touchscreen Display

Description:

* 7.0" 800×480 TFT LCD.

* ABS+PC, plastic enclosure and with only 38mm thickness.

* Industrial Isolated Power Supply module, 4 Serial Ports.

* USB 2.0 Device Port and high-speed software downloading.

* USB Host, Supporting USB Disk/USB Keyboard/Mouse expanded device etc.

* SD Card supporting.

* The mainboard is with spray coating treatment, adapt to harsh industrial environment.

* Complied with CE.

Specifications:

Input Power DC 24V , Input Range: DC 9V～28V
Operating Temperature 0～50℃
Panel Cutout 192mm×138mm
Power Down Allowed < 5ms
Shell Material ABS+PC
Weight About 650g

1.Power Terminals
Pin1 DC24V Resistive 7 Inch TFT HMI Touch Screen Panel , Industrial LCD Touchscreen Display
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) Resistive 7 Inch TFT HMI Touch Screen Panel , Industrial LCD Touchscreen Display
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
