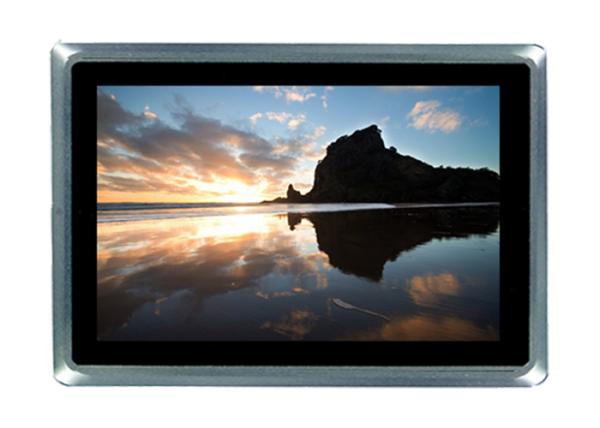

7 Inch TFT Capacitive Touchscreen HMI With Aluminum Shell Supporting Audio Port
7 Inch TFT Capacitive Touchscreen HMI With Aluminum Shell Supporting Audio Port
Specifications
Brand Name :
FLEXEM
Model Number :
FE5070A-B
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
7'' 16:9 TFT LCD,full view
Resolution :
1024×600
Operating Temperature :
-20~70℃
Shell Material :
Front cover made by aluminum,and the surface with hard oxide treatment; The back cover is made of galvanized sheet,and the surface is with dry spray treatment
Panel Cutout :
185mm×123mm
Weight :
About 1000g
Description

7 Inch TFT Capacitive Touchscreen HMI With Aluminum Shell Supporting Audio Port

* Projected capacitive, multi-touch Glass+Glass touch screen.

* Aduio port supporting.


* 7 inch 1024*600 IPS LCD, high brightness, high contrast ratio, full viewing angle.


* Aluminum panel, metal frame, exquisite and metallic appearance.


* Spray coating treatment and applicable to various harsh environment.

Colors 24-bit Color
Audio Supporting
Download Project USB Disk/USB Device/Ethernet/SD Card
Brightness 450cd/㎡
USB Port 1 USB Host 2.0,1 USB Device 2.0
Input Power DC 24V, Input Range:DC18V~28V

1.Power Terminals
Pin1 DC24V 7 Inch TFT Capacitive Touchscreen HMI With Aluminum Shell Supporting Audio Port
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) 7 Inch TFT Capacitive Touchscreen HMI With Aluminum Shell Supporting Audio Port
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) 7 Inch TFT Capacitive Touchscreen HMI With Aluminum Shell Supporting Audio Port
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
