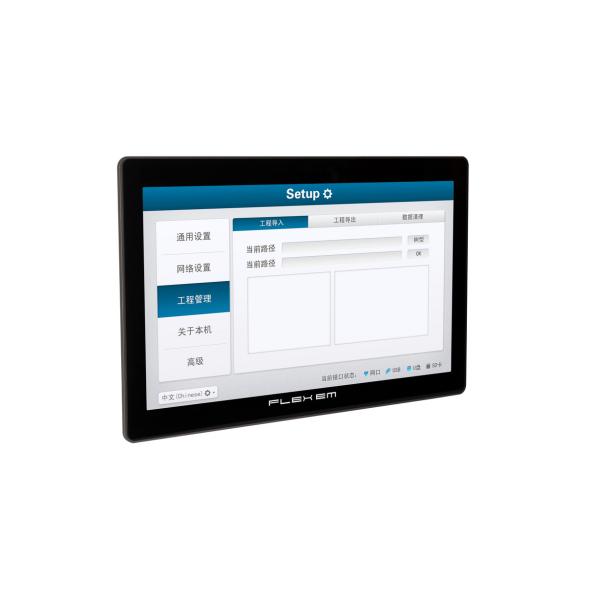

Full HD 22 Inch Capacitive Touch Panel Wall Mounted Supporting Audio Port
Full HD 22 Inch Capacitive Touch Panel Wall Mounted Supporting Audio Port
Specifications
Brand Name :
FLEXEM
Model Number :
FE5220A
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
22'' TFT LCD,full HD,wide view
Resolution :
1920×1080
Operating Temperature :
-10~60℃
Panel Cutout :
502mm×302mm or Wall Mounting Installation
Dimension :
530mm×338mm×61mm
Weight :
About 5300g
Description

Description:

* Audio optional.

* Projected capacitive, multi-touch Glass+Glass touch screen.

* 22 inch 1920*1080 IPS LCD, high brightness, high contrast ratio, full viewing angle.


* Aluminum panel, metal frame, exquisite and metallic appearance.


* Spray coating treatment and applicable to various harsh environment.

Colors 16-bit Color
USB Port 1 USB Host 2.0,1 USB Device 2.0
Input Power DC 24V, Input Range:DC18V~28V
Brightless 250cd/㎡
Download Project USB Disk/USB Device/Ethernet/SD Card
Power Protection Protected From Thunderstrike And Surging

1.Power Terminals
Pin1 DC24V Full HD 22 Inch Capacitive Touch Panel Wall Mounted Supporting Audio Port
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) Full HD 22 Inch Capacitive Touch Panel Wall Mounted Supporting Audio Port
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) Full HD 22 Inch Capacitive Touch Panel Wall Mounted Supporting Audio Port
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
