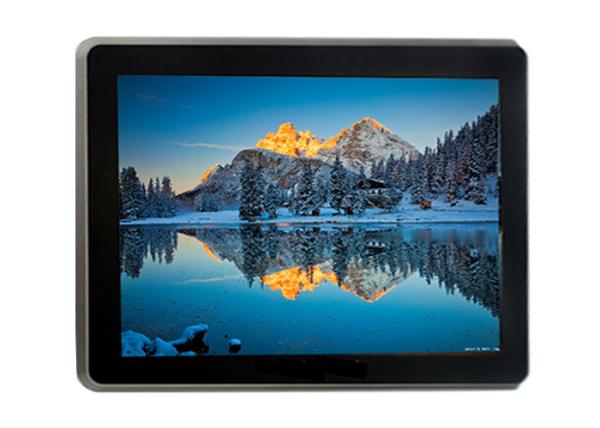

Industrial 9.7 Inch Multi Touch Capacitive HMI Full Viewing Angle 1024×768
Industrial 9.7 Inch Multi Touch Capacitive HMI Full Viewing Angle 1024×768
Specifications
Brand Name :
FLEXEM
Model Number :
FE5097A
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
9.7'' 4:3 TFT LCD,full view
Resolution :
1024×768
Colors :
24-bit color
Brightness :
350cd/㎡
Dimension :
247mm×197mm×31mm
Weight :
About 1100g
Description

Description:

* Projected capacitive, multi-touch Glass+Glass touch screen.
* 9.7 inch 1024*768 IPS LCD, high brightness, high contrast ratio, full viewing angle.
* Aluminum panel, metal frame, exquisite and metallic appearance, with only 31mm thickness.
* Industrial isolation power supply, spray coating treatment and applicable to various harsh environment.

Touch Panel Glass+Glass Projective Multi-touch Capacitive HMI
USB Port 1 USB Host 2.0,1 USB Device 2.0
Input Power DC 24V, Input Range:DC18V~28V
SD Card Supporting
Download Project USB Disk/USB Device/Ethernet
Operating Temperature -20~70℃

1.Power Terminals
Pin1 DC24V Industrial 9.7 Inch Multi Touch Capacitive HMI Full Viewing Angle 1024×768
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) Industrial 9.7 Inch Multi Touch Capacitive HMI Full Viewing Angle 1024×768
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) Industrial 9.7 Inch Multi Touch Capacitive HMI Full Viewing Angle 1024×768
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
