Low Cost PLC Programmable Controllers Digital Input Output With ARM CortexTM M3 CPU
Low Cost PLC Programmable Controllers Digital Input Output With ARM CortexTM M3 CPU
Specifications
Brand Name :
FLEXEM
Model Number :
FL2N-24MT-4HS-4ADDA-4TCPT
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
CPU :
ARM 32-bit Cortex-M3 CPU
Digital Input :
12 Input *12,supporting source/drain type
Digital Output :
12 NPN transisitor power output*12
High-Speed Input :
2-way AB input/4-way separate high-speed counting
High-Speed Output :
4-way high speed surge immunity output(100kHz*2,20kHz *2)
Analog Input :
4 pass AD,12-digit isolated ADC,voltage input:0V~+10V (input impedance>500kΩ） Power input:0mA~+20mA (input Impedance=100kΩ)
Description

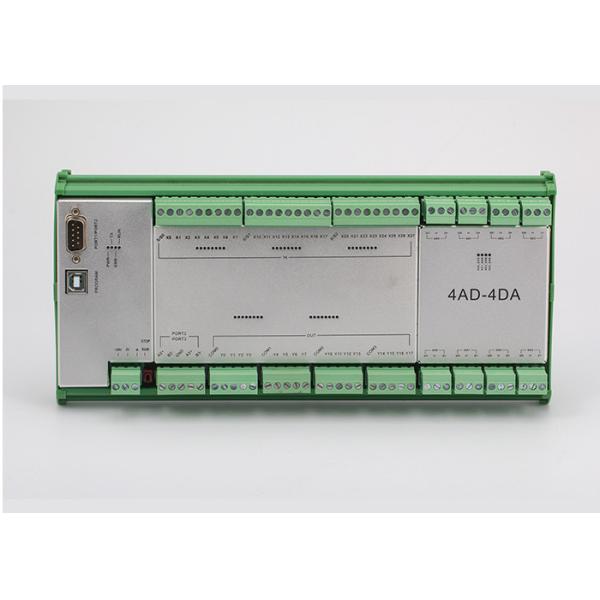

FL2N-24MT-4HS-4ADDA-4TCPT ARM CortexTM M3 CPU PLC communication module


Description:

* CPU: ARM CortexTM M3 CPU.

* Digital Input: Transistor input, supporting source drain type.

* Digital Output: NPN transistor output.

* High-Speed Input: 2-way AB input/4-way separate high-speed counting.

* High-Speed Output: 4-way high speed surge immunity output(100kHz x2, 50kHz x2)/(single-way output maximum 200kHz).

Specification:

Communication Protocol RS232 x1, RS485 x1, Supporting Mitshubish FX2N and Modbus RTU communication
Programming Port USB connection
Components Core components are imported with high quality
High-speed Input 2-way AB input/4-way separate high-speed counting
High-speed Output 4-way high speed surge immunity output(100kHz x2, 20kHz x2)
Bus Communication N/A

PORT1/PORT2
Pin1 Rx-(B) (PORT2 RS485) Low Cost PLC Programmable Controllers Digital Input Output With ARM CortexTM M3 CPU
Pin2 RxD (PORT1 RS232)
Pin3 TxD (PORT1 RS232)
Pin4 NA
Pin5 GND
Pin6 Rx+(A) (PORT2 RS485)
Pin7 NA
Pin8 NA
Pin9 NA
