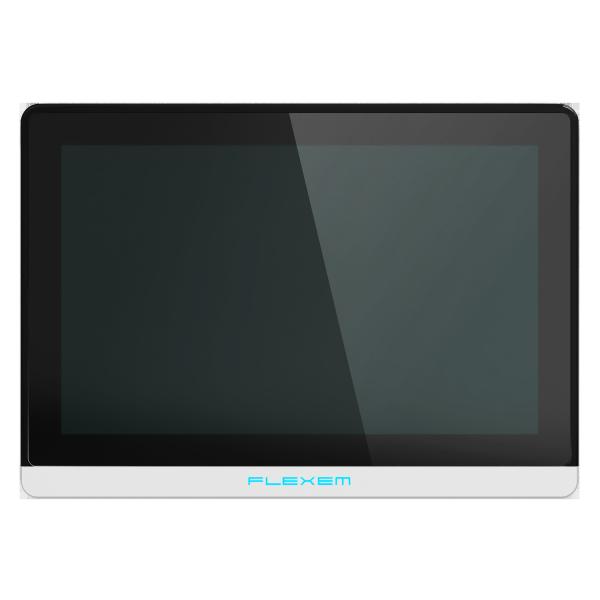

9.7 Inch Capacitive Multi Touch Screen HMI , High Resolution Industrial HMI Touch Panel
9.7 Inch Capacitive Multi Touch Screen HMI , High Resolution Industrial HMI Touch Panel
9.7 Inch Capacitive Multi Touch Screen HMI , High Resolution Industrial HMI Touch Panel
9.7 Inch Capacitive Multi Touch Screen HMI , High Resolution Industrial HMI Touch Panel
9.7 Inch Capacitive Multi Touch Screen HMI , High Resolution Industrial HMI Touch Panel
9.7 Inch Capacitive Multi Touch Screen HMI , High Resolution Industrial HMI Touch Panel
Specifications
Brand Name :
FLEXEM
Model Number :
OEM-F010A
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
9.7'' 4:3 TFT LCD
Resolution :
1024×768
Colors :
24-bit Colors
Brightness :
350cd/㎡
CPU :
600MHz ARM Cortex-A8
Memory :
128MB Flash+128MB DDR3
Download Project :
USB Disk/USB Device/Ethernet/SD Card
Description

Description:

* Perfect experience and multi-touch.
* Humanistic man-computer connection and easy-to-use configuration software.
* Patented anti – shedding structure.
* Patented auto-lock settings.

Download Project USB Disk/USB Device/Ethernet/SD Card
Power Down Allowed <5mS
Panel Cutout 230mm×180mm
Input Power

DC 24V, Input Range:DC 9V~28V
Operating Temperature -10~60℃
Weight About 1000g

1.Power Terminals
Pin1 DC24V 9.7 Inch Capacitive Multi Touch Screen HMI , High Resolution Industrial HMI Touch Panel
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) 9.7 Inch Capacitive Multi Touch Screen HMI , High Resolution Industrial HMI Touch Panel
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) 9.7 Inch Capacitive Multi Touch Screen HMI , High Resolution Industrial HMI Touch Panel
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
