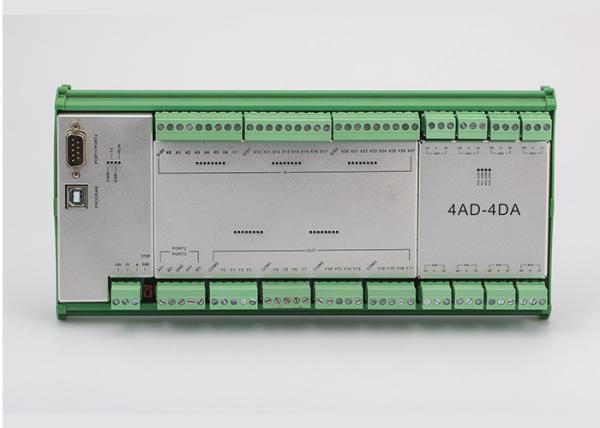

20 General Input PLC Communication Module Supporting Source / Drain Type
20 General Input PLC Communication Module Supporting Source / Drain Type
Specifications
Brand Name :
FLEXEM
Model Number :
FL2N-40MR
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
CPU :
ARM 32-bit Cortex-M3 CPU
Digital Input :
24 High-level input*4,general input*20,supporting source/diary type
Digital Output :
16 relay output*16
High-Speed Input :
2-way AB input/4-way separate high-speed counting
High-Speed Output :
4-way high speed surge immunity output(100kHz*2,20kHz *2),only transistor output
Communication Protocol :
RS232*1,RS485*1 Supporting Mitshubish FX2N and Modbus RTU communication
Description

Description:

* CPU: ARM CortexTM M3 CPU.


* Digital Input: 24 High-level input x4,general input x20,supporting source/drain type.


* Digital Output: 16 NPN transistor power output x16, or PNP transistor power output x16, or transistor power output x8+relay outputx8.

Specification:

CPU ARM Cortex™-M3 CPU
Power Consumption 4W
Power Protection Isolated Power,protected from thunderstrike and surging
Power Down Allowed < 5mS
CE & RoHS EN61000-6-2:2005, EN61000-6-4:2007, RoHS, CE Surge Immunity:±1KV；EFT:±2KV; ESD:4KV, Air:8KV

PORT1/PORT2
Pin1 Rx-(B) (PORT2 RS485) 20 General Input PLC Communication Module Supporting Source / Drain Type
Pin2 RxD (PORT1 RS232)
Pin3 TxD (PORT1 RS232)
Pin4 NA
Pin5 GND
Pin6 Rx+(A) (PORT2 RS485)
Pin7 NA
Pin8 NA
Pin9 NA
