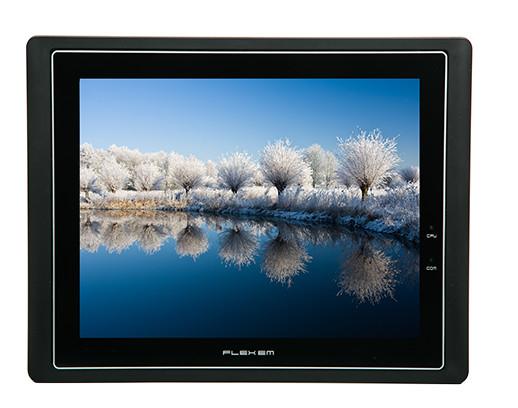

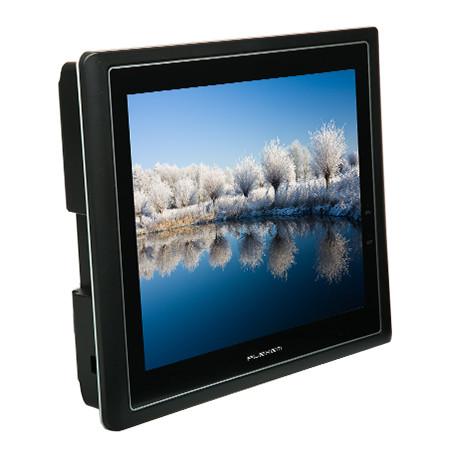

Resistive Industrial Touch Screen, 9.7 Inch TFT LCD Display Panel 16-bit Colors
Resistive Industrial Touch Screen, 9.7 Inch TFT LCD Display Panel 16-bit Colors
Resistive Industrial Touch Screen, 9.7 Inch TFT LCD Display Panel 16-bit Colors
Resistive Industrial Touch Screen, 9.7 Inch TFT LCD Display Panel 16-bit Colors
Specifications
Brand Name :
FLEXEM
Model Number :
FE4097CE
Certification :
CE
Place of Origin :
ShenZhen
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000 pcs/week
Delivery Time :
1-7 business days after payment confirmed
Packaging Details :
Carton
Display :
9.7" TFT LCD
Resolution:(W×H) :
1024x768
Colors :
16-bit Colors
Brightness :
350cd/m²
Shell Material: :
ABS
Dimension :
276mm x 213mm x 39mm
Description

Description:

* 9.7" 1024×768 TFT LCD.


* ABS+PC, plastic enclosure and with only 38mm thickness.


* Industrial Power Supply module, 4 Serial Ports, with Ethernet.

Specification:

1.Power Terminals
Pin1 DC24V Resistive Industrial Touch Screen, 9.7 Inch TFT LCD Display Panel 16-bit Colors
Pin2 0V
Pin3 FG
2.COM1/COM3(9DB male)
Pin1 Rx-(B) Resistive Industrial Touch Screen, 9.7 Inch TFT LCD Display Panel 16-bit Colors
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4(9DB male)
Pin1 Rx-(B) Resistive Industrial Touch Screen, 9.7 Inch TFT LCD Display Panel 16-bit Colors
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
