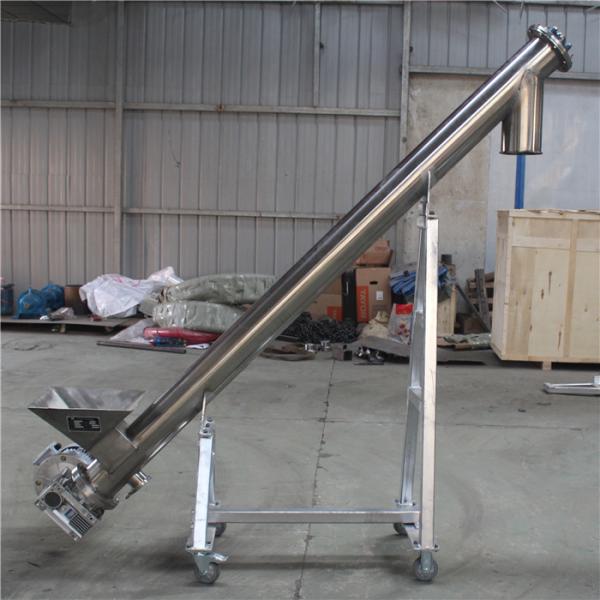

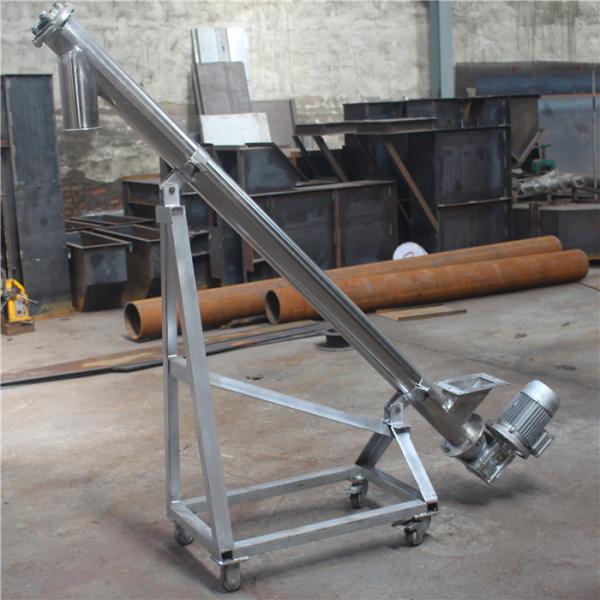

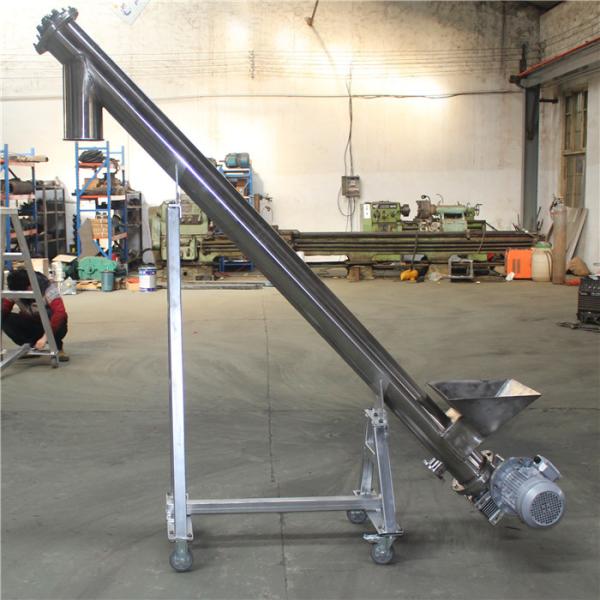

Spiral Conveyor System 20m Inclined Screw Feeder For Coffee Powder
Spiral Conveyor System 20m Inclined Screw Feeder For Coffee Powder
Spiral Conveyor System 20m Inclined Screw Feeder For Coffee Powder
Spiral Conveyor System 20m Inclined Screw Feeder For Coffee Powder
Spiral Conveyor System 20m Inclined Screw Feeder For Coffee Powder
Spiral Conveyor System 20m Inclined Screw Feeder For Coffee Powder
Specifications
Brand Name :
TECHANG
Model Number :
TCGX
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
20~30 working days
Packaging Details :
Wooden case
Name :
Spiral Conveyor System / Inclined Screw Feeder For Coffee Powder
Material Feature :
Other
Length :
0.5~20m
Feature :
Simple Operation
Frame Material :
Stainless steel
Application :
Coffee Powder
Description

Spiral Conveyor System / Inclined Screw Feeder For Coffee Powder

Introduction

Spiral Conveyor System / Inclined Screw Feeder For Coffee Powder is a kind of machine that uses the motor to drive the screw to turn and push the material to realize the purpose of conveying. It can be transported horizontally, obliquely or vertically. It has the advantages of simple structure, small cross-sectional area, good sealing, easy operation, easy maintenance and easy closed transportation.

Spiral Conveyor System / Inclined Screw Feeder For Coffee Powder is the main unit for mechanical transport operation of industry and agriculture, which uses motor to drive screw rotation and move material to achieve conveying purpose.

Spiral Conveyor System 20m Inclined Screw Feeder For Coffee Powder

Technical data

Model Diameter Screw Rotation Speed Inclination Angle Conveyor Length
(mm) (r/min) (degree) (m)
GX160 165 20,30,35,45,60,75,90,120,150,190,207,290 <90 3~30
GX219 219
GX273 273
GX325 325

Application

Spiral Conveyor System / Inclined Screw Feeder For Coffee Powder is widely used in building materials, metallurgy, chemical, electric power, coal, machinery, light industry, grain and food industry, suitable for conveying powder, granular, small pieces of materials, such as cement, coal, grain, chemical fertilizer, ash, sand, coke, etc. should not be easily perishable, viscous, easy to agglomerate the material. Commonly seen in the food industry, these conveyors transport ingredients to and from mixers, ovens and vats and need to be sterile at all times. Therefore, they are commonly made of stainless steel, a smooth food grade metal that is less likely to contaminate edible ingredients than other materials and is easily cleaned.

Features

1 . Spiral conveyer separates and transports material spirally. It is light because of no underwater bearing which makes its maintenance more convenient.
2. Spiral conveyer adoption of new decelerator makes the structure very compact, the operation smooth and the installation more convenient.
3. Spiral conveyer using of the flexible bars in tube, which are wear-resisting, makes the separator work with lower noise, and replace of these bars easily.
4. Spiral conveyer whole set enjoys simple installation and easy operation.

Spiral Conveyor System 20m Inclined Screw Feeder For Coffee Powder

Product tags

screw feeder conveyor

,

inclined screw conveyor for powder

,

hopper screw conveyor
