20 T/H Rotary Vibrating Screening Sieve Machine For Cocoa Seeds
20 T/H Rotary Vibrating Screening Sieve Machine For Cocoa Seeds
20 T/H Rotary Vibrating Screening Sieve Machine For Cocoa Seeds
20 T/H Rotary Vibrating Screening Sieve Machine For Cocoa Seeds
Specifications
Brand Name :
TECHANG
Model Number :
TCXZS
Certification :
CE
Place of Origin :
China
MOQ :
One set
Price :
Negotiatable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10-15 working days

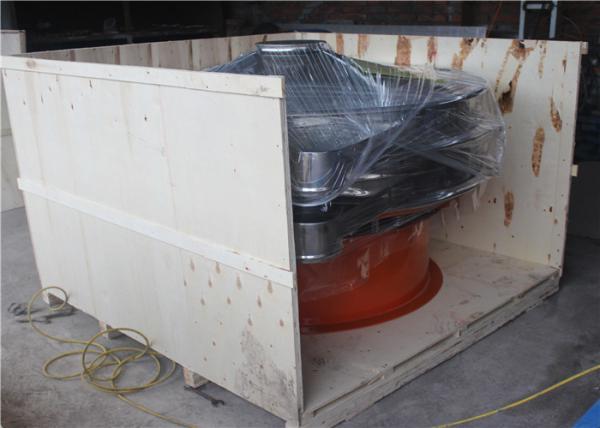

Packaging Details :
Wooden case
Name :
Hot Sale Rotary Vibrating Screening Sieve Machine For Cocoa Seeds
Material :
Stainless Steel
Layer(s) :
1-5 Layers
Mesh size :
2~500 mesh
Capacity :
20 KG~20 T/H
Surface :
Mirror polish
Motor Type :
Vibration motor
Frequency :
50 / 60 HZ
Customized :
Acceptable
Description

Hot Sale Rotary Vibrating Screening Sieve Machine For Cocoa Seeds

Product Description

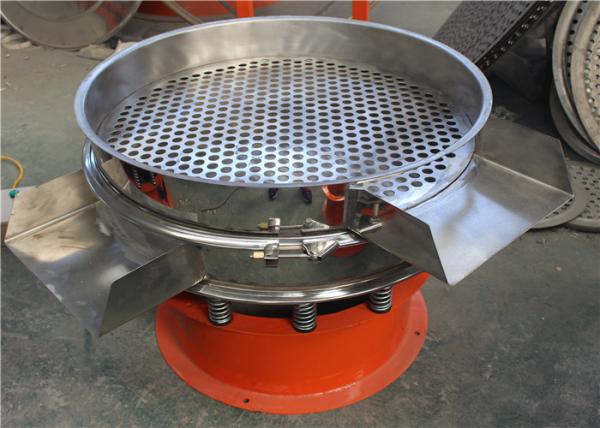

Hot Sale Rotary Vibrating Screening Sieve Machine For Cocoa Seeds is a high precision fine powder sieving machine. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.

20 T/H Rotary Vibrating Screening Sieve Machine For Cocoa Seeds

Features

Hot Sale Rotary Vibrating Screening Sieve Machine For Cocoa Seeds has following features:
1. It can be used with single or multilayer screen cloth.
2. Automatic discharge of materials, continuous operation.
3. No dead corner of parts, easy rinse thoroughly and disinfection.
4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.
5. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.
6. Small volume, less space occupation, easy to move,360 degree adjustment of discharge opening.
7. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, and filter can reach 5 um.

Specification

Hot Sale Rotary Vibrating Screening Sieve Machine For Cocoa Seeds can be up to 5 layers, and the mesh size can reach 500 mesh. Usually, a single layer is used for flour which can achieve the purpose of removing the inpurities.


Model

PowerDiameter of screen surfacelayerMesh size
TCXZS6000.37kw560mm1-50-500mesh
TCXZS8000.55KW760mm1-50-500mesh
TCXZS10000.75KW930mm1-50-500mesh
TCXZS12001.5KW1130mm1-50-500mesh
TCXZS15002.0KW1430mm1-50-500mesh
TCXZS18002.2KW1730mm1-50-500mesh
TCXZS20002.5KW1930mm1-50-500mesh

Application

Hot Sale Rotary Vibrating Screening Sieve Machine For Cocoa Seeds is widely used in food industry, such as flour, garri, milk powder, etc. As well as used in mining industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.

20 T/H Rotary Vibrating Screening Sieve Machine For Cocoa Seeds
