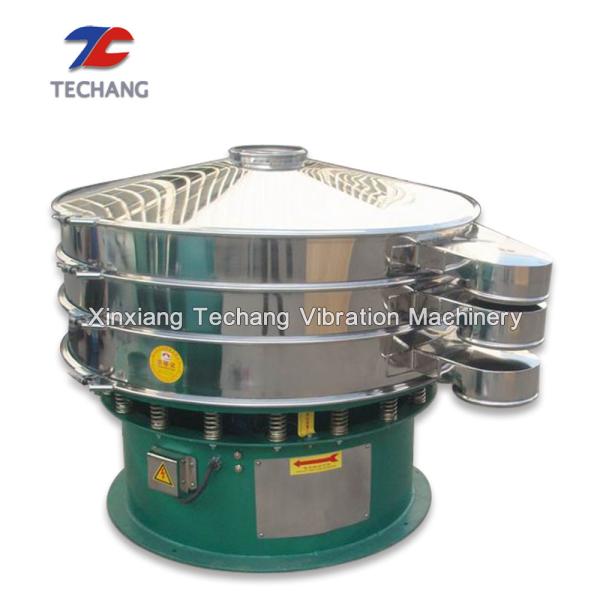

Automatic Rotary Vibrating Screening Machine High Screening Efficiency For Flour
Automatic Rotary Vibrating Screening Machine High Screening Efficiency For Flour
Specifications
Brand Name :
Techang
Model Number :
XZS
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD/ 800-1800 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability :
50/set/ month
Delivery Time :
10-18work day
Packaging Details :
Wooden case or pallet for High screening efficiency automatic rotary vibrating screening machine for flour
Material :
Carbon Steel/ Stainless Steel 304
Capacity :
100Kg-10Tons/hour
Feature :
High Screening Efficiency
Diameter :
400-2000mm
Layer(s) :
1-3
Color :
Customers' Request
Description
High screening efficiency automatic rotary vibrating screening machine for flour
Product Description
High screening efficiency automatic rotary vibrating screening machine for flour is widely used in food, medicine, metallurgy, building materials, food, chemical, cement, glass, ceramics, and papermaking industries. In a word, dry and wet materials screening, filtering. It have the advantage of smooth vibration, the vibration force big, stable performance, network speed, light weight, simple operation, easy maintenance, etc.
Automatic Rotary Vibrating Screening Machine High Screening Efficiency For Flour
Automatic Rotary Vibrating Screening Machine High Screening Efficiency For Flour
Application
1)Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder,fine powder.
2)Food industry: sugar powder, starch,chili powder, salt, rice noodle, milk powder, egg powder, sauce.3)Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.4)Medicinal industry: all kinds of medicine.5)Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
Feature
1. High screening efficiency automatic rotary vibrating screening machine for flourCan be used with single or multilayer screen mesh.
2. Automatic discharge of materials, continuous operation.
3. No dead corner of parts, easy rinse thoroughly and disinfection.
4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.
5. New grid structure, long service life of screen cloth, only 3-5min for screen mesh replacement.
6. Small volume, less space occupation, easy to move,360 degree adjustment of discharge opening.
7. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, andfilter can reach 5 um.
Technical parameters

The following table shows some model of High screening efficiency automatic rotary vibrating screening machine for flour for you to refer, we can also provide you with customize services.

Model

Power

(KW)

Diameter of screen surface

(mm)

layer

Mesh size

(mesh)

 Frequency (rpm)
XZS400 0.15 340 1-3 layer 0-500 mesh 1500
XZS600 0.35 540
XZS800 0.55 730
XZS1000 0.75 950
XZS1200 1.5 1150
XZS1500 2.0 1450
XZS1800 2.2 1730
XZS2000 2.5 1930
