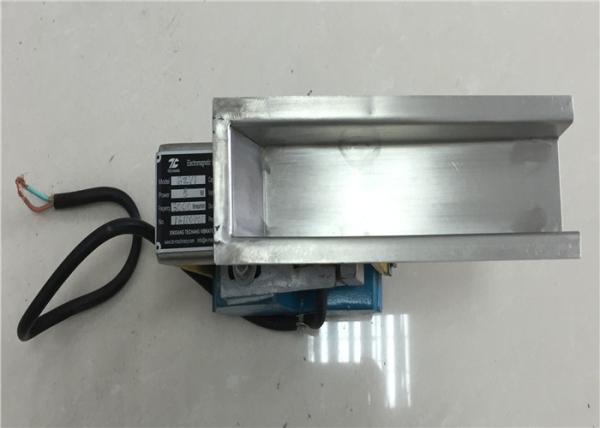

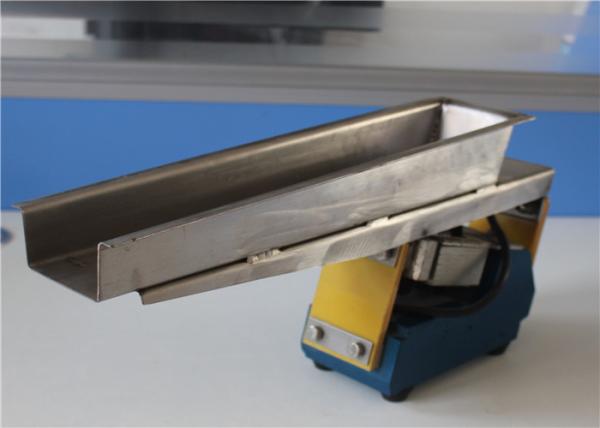

Custom Made Magnetic Vibrating Feeder , Magnetic Feeder Open And Closed
Custom Made Magnetic Vibrating Feeder , Magnetic Feeder Open And Closed
Custom Made Magnetic Vibrating Feeder , Magnetic Feeder Open And Closed
Custom Made Magnetic Vibrating Feeder , Magnetic Feeder Open And Closed
Specifications
Brand Name :
TECHANG
Model Number :
TCGZV
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10~15 working days
Packaging Details :
Wooden case
Name :
GZV Magnetic Vibrating Feeder , Gzv Mini Vibrating Feeders , Small Vibrating Feeder
Dimension(l*w*h) :
Customer Request
Voltage :
220/380V
Power(w) :
5-50 W
Function :
Quantificationally Feeding
Condition :
New
Weight :
4-45KG
Type :
Open and closed
Description

GZV Magnetic Vibrating Feeder , Gzv Mini Vibrating Feeders , Small Vibrating Feeder

Introduction


Electromagnetic vibrating feeder (hereinafter referred to electric vibration machine) is an advanced feeding device, it is suitable for the requirements of continuous production. In the production process can be mistaking the viscosity of the material or powder material from the storage silos or quantitative, uniform, continuously sent to the device. I company of the equipment has been widely used in cement, mining, metallurgy, coal, chemical industry, construction, docks and pharmaceutical, tea processing, ceramics and other industrial sectors.

Product Description
1. GZV Magnetic Vibrating Feeder , Gzv Mini Vibrating Feeders , Small Vibrating Feeder is the machine which can orient and feed small parts to the assembly line by vibration.

2. GZV Magnetic Vibrating Feeder , Gzv Mini Vibrating Feeders , Small Vibrating Feeder is a new type of feeding equipment , using electromagnetic exciter as the vibration source to drive hopper trough work. It features smooth vibrating, reliable operation, long service life and being suitable for feeding.

Custom Made Magnetic Vibrating Feeder , Magnetic Feeder Open And Closed

Application


GZV Magnetic Vibrating Feeder , Gzv Mini Vibrating Feeders , Small Vibrating Feeder are widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, machinery industry and agriculture. It is also suitable for automated batching and quantitative packaging and production process automation systems.

Custom Made Magnetic Vibrating Feeder , Magnetic Feeder Open And Closed


Characteristics

1. The feeder in the course of continuous feeding thrown the parts up, so to wear small trough.
2. In order to reduce the noise and improve life and feed efficiency, the inside of the bowl is usually coated by urethane.
3. The utility model has the advantages of small size, light weight, simple structure, convenient installation and low operating cost.
4. The use of half wave rectifier control, can be used in the stepless adjustment.
5. The vibrators are controlled by control boxes.

Use and installation


1. In order to ensure the normal operation of feeder,Should pay attention to several points in the installation of hopper.
2. The outlet and the feed tank should have 5mm gap,Ensure the hopperis not affected by the process of feeding.
Chute exit should design oblique,To avoid the vertical pressure direct pressure on the feeder,Otherwise it will seriously affect the efficiency of feeder.
3. The size of the opening of the hopper shall be guaranteed to obtain sufficient material,In order to adjust the number of materials should be set gate.
4. Vibrating feeder for seat type structure,Install flat on the support plate.


Advantage

1. Small size, light weight, simple structure, convenient installation, no rotating parts so no need lubrication, convenient maintenance and low operating cost.
2. Due to Electromagnetic vibrating feeder uses the resonance principle of mechanical vibration, the double mass works in a low critical resonance state, thus consuming less electric energy.
3. Since the current can be instantaneously changed, opened and closed, so the feeding amount has a high precision.
4.The control equipment of this series of electro-vibration machines can easily adjust the feeding amount during use, and can realize centralized control and automatic control of the production process.
5. Since the material in the feed tank is continuously thrown up during the feeding process and jumps forward according to the trajectory of the parabola, the wear of the feed tank is small.
6. This series of vibrating machines is not suitable for applications with explosion-proof requirements.
Main Features
GZV Magnetic Vibrating Feeder , Gzv Mini Vibrating Feeders , Small Vibrating Feeder is a new type of feeding equipment, which has the following characteristics compared with other feeding equipment:
1. small size, light weight, simple structure, easy installation and low operating cost;
2. Due to the mechanical vibration resonance principle, the power consumption is small;
3. Using thyristor half-wave rectification power supply, the feed amount can be adjusted steplessly during use;
4. The feeder continuously throws the material during the feeding process, so the wear of the feed tank is small.

Model Selection
Model GZV 1 GZV 2 GZV 3 GZV 4 GZV 5 GZV 6
Capacity(t/h) 0.1 0.5 1 2 4 6
Double Amplitude 1.5 1.5 1.5 1.5 1.5 1.5
Frequency(r/m) 3000 3000 3000 3000 3000 3000
Power(W) 5 8 20 25 30 50
Weight kg) 4 7 12 18 27 45
Voltage(V) 220 220 220 220 220 220

Custom Made Magnetic Vibrating Feeder , Magnetic Feeder Open And Closed
