Industry 25.5/35rpm Rotary Airlock Valve Discharge / Feeder Valve
Industry 25.5/35rpm Rotary Airlock Valve Discharge / Feeder Valve
Specifications
Brand Name :
TECHANG
Model Number :
TCYJD
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10~15 working days
Packaging Details :
Wooden case
Name :
Industry Airlock Rotary Discharge / Feeder Valve
Motor power :
0.55-5 kw
Impeller speed :
10/19~25.5/35 rpm
Power :
Electric rotary valve
Rated feeding :
2/4~132~160 m3/h
Port Size :
Variety
Connection :
Flange
Material :
Casting
Structure :
Regulating
Media :
powder/cement/sand
Description

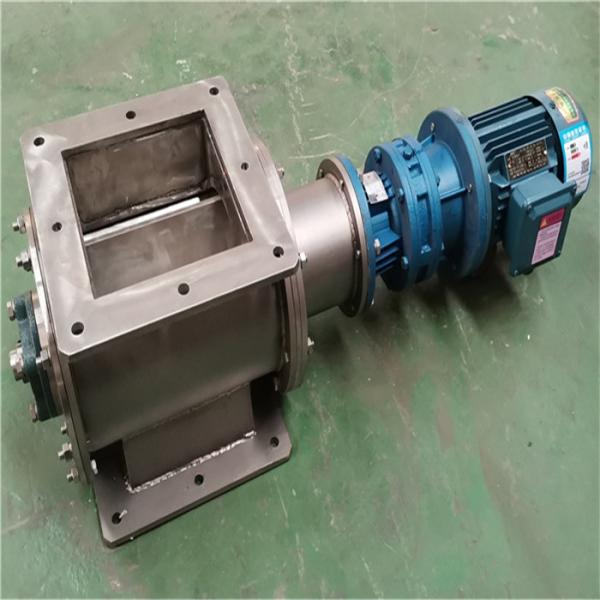

Industry Airlock Rotary Discharge / Feeder Valve

Product Description

Industry Airlock Rotary Discharge / Feeder Valve is specially designed as bulk material discharge device under dust-moving equipment, silo, storage bin, hopper etc. The main function of powder rotary valve is to control discharge bulk solids from silo, mixer, cyclone or hopper under gravity, pressure and vacuum conditions.

Industry 25.5/35rpm Rotary Airlock Valve Discharge / Feeder Valve

Industry 25.5/35rpm Rotary Airlock Valve Discharge / Feeder Valve

Feature
1. Material of silo discharge: stainless steel, carbon steel.
2. Round inlet and square inlet or based on the customer's needs.
3. Powder rotary valve equipped with general motor and variable speed motor, to achieve uniform discharge rate or variable speed discharge rate.
4. Good sealing performance, no blocking and no adherence.
5. Wide range of application.

Advantage


1. The structure is compact, the shape is beautiful, and the use is convenient.
2. Smooth running, low noise.
3. It is acceptable to customize.

Application

Industry Airlock Rotary Discharge / Feeder Valve is widely used for nuts, almond, sunflower seed, cotton seed, grain cereals, chestnut, coffee, grain, sugar, spice, cement, calcite, glass powder, marble powder, plastic pellets, sawdust, coal etc.


Specification
There are many models for Industry Airlock Rotary Discharge / Feeder Valve, we will choose a suitable model according to the customers' needs.
ModelABCEFMHhφ
YJD02240200150650420122.5225128xφ9
YJD04260230180758526140280158xφ11
YJD06300250200778536150300158xφ11
YJD08300270220798546160320188xφ11
YJD10320290240880628170340188xφ13
YJD12340310260900638180360188xφ13
YJD14360330280920648190380208xφ17
YJD16400350300960678200400208xφ17
YJD18400370320980688220440228xφ17
YJD204203903401000698230460228xφ17
YJD265004504001150740260520248xφ17
YJD3052049044011907552805602412xφ17


Industry 25.5/35rpm Rotary Airlock Valve Discharge / Feeder Valve
