Paver / Paving Bricks Vibration Table 0.25~9 m2 Area
Paver / Paving Bricks Vibration Table 0.25~9 m2 Area
Specifications
Brand Name :
TECHANG
Model Number :
TCZP
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10~15 working days
Packaging Details :
Wooden case
Name :
Paver / Paving Bricks Vibration Table
Motor :
Vibration motor
Frequency :
50/60 HZ
Loading :
100kg-10t
Area :
0.25~9 m2
Max Dimension :
4000*6000 mm
Material :
Carbon Steel
Working condition :
Continuous
Table thickness :
12 mm
Application :
Paver / Paving Bricks
Customized :
Acceptable
Description

Paver / Paving Bricks Vibration Table

Product Description

Paver / Paving Bricks Vibration Table are utilized for compacting materials as well as for loosening bulk material by vibration. Applications of Paver / Paving Bricks Vibration Table are typically used in are compacting, such as eliminating the air from the mould / paving/ bricks, compaction of packing, concrete mixes or knock out of molds. Paver / Paving Bricks Vibration Table is mainly composed of: bracket, table, vibration motor, shock absorption institutions.

There are two-dimension and three-dimension vibrating table for Paver / Paving Bricks Vibration Table.

Paver / Paving Bricks Vibration Table 0.25~9 m2 Area

Specification

There are many models for Paver / Paving Bricks Vibration Table, and the area ranges from 0.25 to 9m2. The following table shows the detailed data for your reference.

Model Area(m2) Power(kw) Amplitude(mm)
ZP-500*500 0.25 2*0.25 2-5
ZP-1000*1000 1 2*0.4 2-5
ZP-1200*1200 1.44 2*3 2-5
ZP-1500*1500 2.55 2*3 2-5
ZP-2000*2000 4 4*3 2-5
ZP-3000*3000 9 6*1.5 2-5

Detailed Images

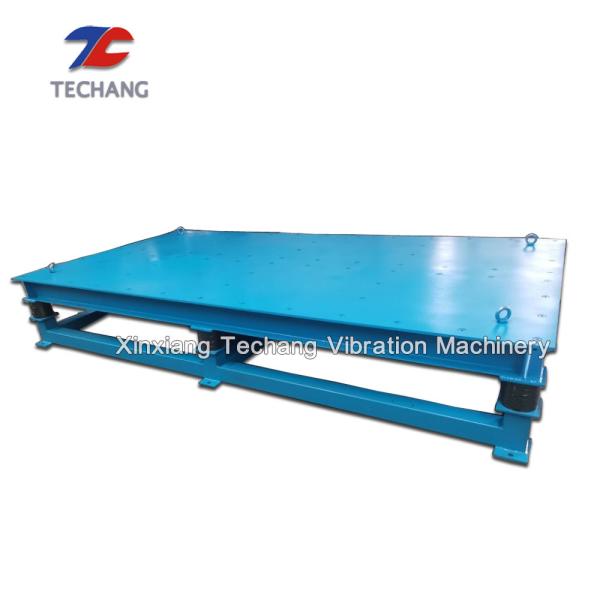

Paver / Paving Bricks Vibration Table is made up of table-board, vibration motor, damping spring and foundation bed.

Paver / Paving Bricks Vibration Table 0.25~9 m2 Area
