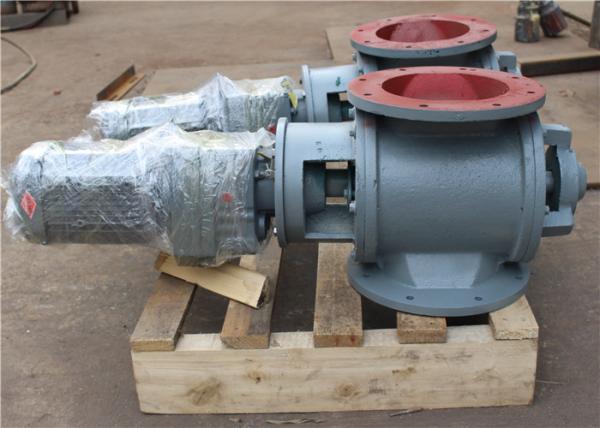

Material Handling Unloading 320mm Rotary Feeder Valve Dust Collector Air Lock
Material Handling Unloading 320mm Rotary Feeder Valve Dust Collector Air Lock
Material Handling Unloading 320mm Rotary Feeder Valve Dust Collector Air Lock
Material Handling Unloading 320mm Rotary Feeder Valve Dust Collector Air Lock
Specifications
Brand Name :
TECHANG
Model Number :
TCYJD
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10~15 working days
Packaging Details :
Wooden case
Name :
Material Handling Rotary Unloading / Feeder Valve
Motor power :
0.55-5 kw
Voltage :
380/400/415/460 V
Impeller speed :
10/19~25.5/35 rpm
Rated feeding :
2/4~132~160 m3/h
Output per rotation :
0.005~0.11 m3 /rpm
Port Size :
Variety
Connection :
Round Type
Pressure :
Medium Pressure
Description

Material Handling Rotary Unloading / Feeder Valve

Introduction

Material Handling rotary unloading/feeder valve transfers the powder or small granular materials to the lower discharge hole for discharge from the upper feeding bin or hopper utilizing rotating impeller with grid chamber, thus realizing even feeding or variable feeding.

Material Handling rotary unloading/feeder valve is mainly applied for dust removal, dust cleaning, packing machine and professional transportation batching system industries, such as power plant, cement plant, chemical plant, etc., used for air locking or quantitative feeding during conveying of dry powder material, and can also be used for dust discharge under dust hopper of dust catcher and air preheater, it is the ideal accessory for conveying, discharging and batching systems.

Material Handling Unloading 320mm Rotary Feeder Valve Dust Collector Air Lock

Material Handling Unloading 320mm Rotary Feeder Valve Dust Collector Air Lock

Application

Material Handling Rotary Unloading / Feeder Valve is mainly applied for dust removal, dust cleaning, packing machine and professional transportation batching system industries, such as power plant, cement plant, chemical plant, etc.

Advantage

1. The speed of impeller can be adjusted and changed according to needs, thus, the feeding capacity can be adjusted.

2. Simple stucture and stable performance.

3. Convenient operation and maintenance.

4. Good sealing performance, no blocking and no adherence.
5. Wide range of application.

Specification
This is the technical parameters of different types of Material Handling Rotary Unloading / Feeder Valve.
Model A B C E F M H h φ
YJD02 240 200 150 650 420 122.5 225 12 8xφ9
YJD04 260 230 180 758 526 140 280 15 8xφ11
YJD06 300 250 200 778 536 150 300 15 8xφ11
YJD08 300 270 220 798 546 160 320 18 8xφ11
YJD10 320 290 240 880 628 170 340 18 8xφ13
YJD12 340 310 260 900 638 180 360 18 8xφ13
YJD14 360 330 280 920 648 190 380 20 8xφ17
YJD16 400 350 300 960 678 200 400 20 8xφ17
YJD18 400 370 320 980 688 220 440 22 8xφ17
YJD20 420 390 340 1000 698 230 460 22 8xφ17
YJD26 500 450 400 1150 740 260 520 24 8xφ17
YJD30 520 490 440 1190 755 280 560 24 12xφ17
