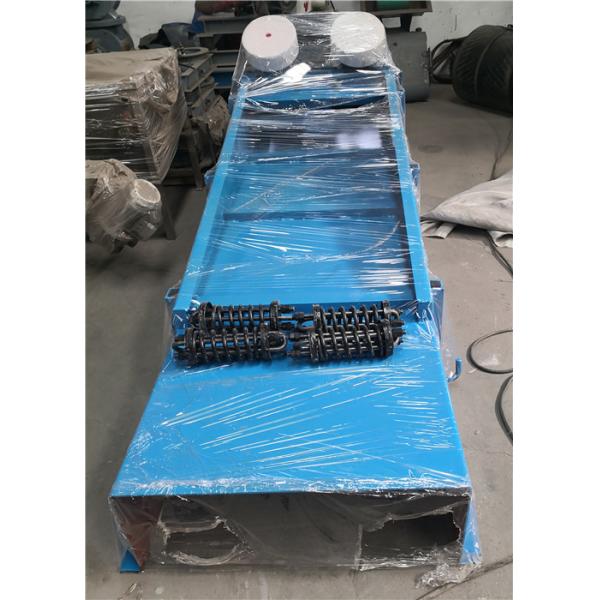

Mining Motor Grizzly Vibrating Feeder For Metallurgy Coal Thermal Power
Mining Motor Grizzly Vibrating Feeder For Metallurgy Coal Thermal Power
Specifications
Brand Name :
TECHANG
Model Number :
TCGZG
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Wooden case
Name :
Mining Motor Grizzly Vibrating Feeder Price
Conveying length :
1~9 meter
Material :
Carbon Steel
Driving :
Vibrating motor
Voltage :
380~460 V
Motor speed :
1450 r/min
Feeding granularity :
120~800 mm
Feature :
Uniform and continuous feeding
Installation :
Standing / Hanging type
Customized :
Acceptable
Description

Mining Motor Grizzly Vibrating Feeder Price

Product Description

Mining Motor Grizzly Vibrating Feeder Price are widely used in mining, metallurgy, coal, thermal power, fire resistance, glass, building materials, electric power, chemical, machinery, light industry, food and other industries. It is suitable for uniformly and continuously feeding the block, granular and powder materials from the storage bin or the funnel to the receiving device. The motor vibration feeder can feed material to belt conveyor, vibrating conveyor, bucket elevator, crusher, vibrating screen, pulverizer, etc., and can be used in the process of automatic matching, quantitative packaging and automatic control, to achieve automation of flow operations.

Mining Motor Grizzly Vibrating Feeder For Metallurgy Coal Thermal Power

Working Principle

Mining Motor Grizzly Vibrating Feeder Price is realized by using a special vibrating motor to drive the feeding trough to make a cyclic linear reciprocating vibration in the oblique direction. When the vertical component of the acceleration of the vibration of the feed tank is greater than the acceleration of gravity, the material in the tank will be thrown up and jump forward according to the trajectory of the parabola, throwing and falling within 1/50 seconds, due to the continuous vibration of the vibration motor The vibration, the feed trough continuously vibrates, and the material in the trough continuously jumps forward to achieve the feeding purpose.

Feature

1. Small size, light weight, reliable operation, convenient installation, and convenient maintenance
2. Convenient adjustment and stable feeding
3. Low noise, low power consumption, good performance of the regulator and nonexistence of material clashing circumstance

Mining Motor Grizzly Vibrating Feeder For Metallurgy Coal Thermal Power

Mining Motor Grizzly Vibrating Feeder For Metallurgy Coal Thermal Power

Advantages

1. Smoothly vibrating and long service life.
2. Vibrating force adjustable, easy to operation.
3. Low noise and power consumption.
4. Simple structure, easy to maintenance.
5. Adjustable angle rubber springs.
6. Low profile - minimum headroom.
7. Simple, stable, variable controller.

Specification
The below table shows the detailed data of different models of Mining Motor Grizzly Vibrating Feeder Price for your reference, and we will choose a suitable model according to the customer's needs.
Model Capacity(t/h) Feeding trough size(mm) Working type

Particle size
(mm)

Weight
(kg)
GZG30-4 15 300×1000×160











Continue

 120 110
GZG40-4 30 400×1200×160 155
GZG50-4 50 500×1200×160 190
GZG60-4 80 600×1800×180 150 410
GZG70-4 100 700×1800×200 180 440
GZG80-4 200 800×2000×225 200 640
GZG90-4 300 900×1500×300 250 730
GZG110-4 400 1100×1500×300 900
GZG130-4 500 1300×1500×400 350 1000
GZG70-6 80 700×1800×200 150 440
GZG80-6 160 800×2000×225 180 670
GZG90-6 240 900×1500×300 240 740
GZG110-6 320 1100×1500×300 940
GZG130-6 500 1300×1500×400 400 1040
GZG150-6 780 1500×1800×560 2000
GZG180-6 1000 1800×1800×500 600 2590
GZG200-6 1300 2000×2000×500 800 3700
