Industry Stainless Steel Magnetic Vibratory Feeder For Granular Powder Materials
Industry Stainless Steel Magnetic Vibratory Feeder For Granular Powder Materials
Specifications
Brand Name :
TECHANG
Model Number :
TCGZ
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10~15 working days
Packaging Details :
Wooden case
Name :
Industry Stainless Steel Magnetic Vibratory Feeder
Material :
Stainless Steel
Function :
Uniform feeding
Feeding size :
50~500 mm
Voltage :
220 / 380 V
Current :
1.34~47.6*2 A
Double amplitude :
1.75 / 1.5 mm
Customized :
Acceptable
Type :
Hanging
Application :
Powder
Description

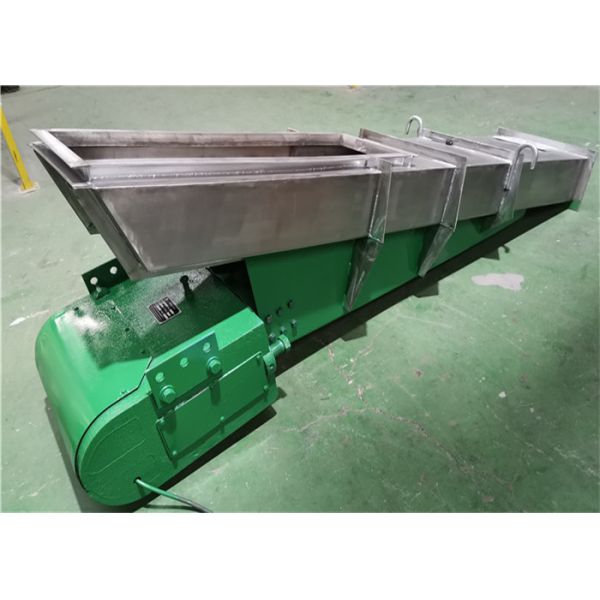

Industry Stainless Steel Magnetic Vibratory Feeder


Introduction

Industry Stainless Steel Magnetic Vibratory Feeder is used to uniformly or quantitatively feeding block, granular and powder materials from the storage bin or funnel to the receiving device. For example, it can feeding material to belt conveyor, bucket elevator, screening device, or feeding to crusher, pulverizer, etc., and be used for automatic batching, quantitative packaging equipment, etc., and being used in automatic control process, to realize automation of production processes.

Industry Stainless Steel Magnetic Vibratory Feeder For Granular Powder Materials


Industry Stainless Steel Magnetic Vibratory Feeder For Granular Powder Materials

Characteristics

1. Small size, light weight, simple structure, convenient installation, no rotating parts so no need lubrication, convenient maintenance and low operating cost.

2. Due to Electromagnetic vibrating feeder uses the resonance principle of mechanical vibration, the double mass works in a low critical resonance state, thus consuming less electric energy.

3. Since the current can be instantaneously changed, opened and closed, so the feeding amount has a high precision.

4. The control equipment of this series of electro-vibration machines can easily adjust the feeding amount during use, and can realize centralized control and automatic control of the production process.

5. Since the material in the feed tank is continuously thrown up during the feeding process and jumps forward according to the trajectory of the parabola, the wear of the feed tank is small.

6. This series of vibrating machines is not suitable for applications with explosion-proof requirements.

Specification
The following table shows the detailed data of different models of Industry Stainless Steel Magnetic Vibratory Feeder for your reference, and we will choose a suitable model accordting to your needs.
Type Model

Capacity
(t/h)

Particle size
(mm)

Double amplitude
(mm)

Voltage
(V)

Current
(A)

Power
(KW)

 Model of controller

Weight
(kg)
Basic Type GZ1 5 7 50 1.75 220 1.34 1 0.06 XKZ­5G2 73
GZ2 10 14 50 3.0 2.3 0.15 146
GZ3 25 35 75 4.58 3.8 0.2 217
GZ4 50 70 100 8.4 7 0.45 XKZ­20G2 412
GZ5 100 140 150 12.7 10.6 0.65 656
GZ6 150 210 200 1.5 380 16.4 13.3 1.5 XKZ­20G3 1252
GZ7 250 350 250 24.6 20 3 XKZ­100G3 1920
GZ8 400 560 300 39.4 32 4 3040
GZ9 600 840 350 47.6 38.6 5.5 XKZ­200G3 3750
GZ10 750 1050 500 39×2 32×2 4×2 XKZ­200G3 6491
GZ11 1000 1400 500 47.6×2 38.6×2 5.5×2 7680
Application

Industry Stainless Steel Magnetic Vibratory Feeder are widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, machinery industry and agriculture. It is also suitable for automated batching and quantitative packaging and production process automation systems.
Industry Stainless Steel Magnetic Vibratory Feeder For Granular Powder Materials
