Liquid Ceramic Slurry Circular Vibrating Screen Filter Sieve
Liquid Ceramic Slurry Circular Vibrating Screen Filter Sieve
Specifications
Brand Name :
TECHANG
Model Number :
TCXZS
Certification :
Food Processing
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets/month
Delivery Time :
20 working days
Packaging Details :
Wooden case
Name :
Liquid Ceramic Slurry Circular Vibrating Filter Sieve Screen
Input size :
≤10 mm
Dimension(l*w*h) :
Variable
Screening mesh area :
1.62~11.52 m2
Customized :
Acceptable
Layer :
1-5
Mesh size :
0-500 mesh
Description

Liquid Ceramic Slurry Circular Vibrating Filter Sieve Screen

Product Discription

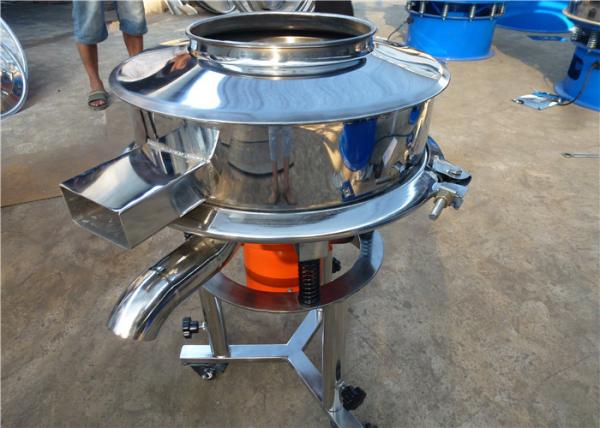

Liquid Ceramic Slurry Circular Vibrating Filter Sieve Screen is a high precision fine powder sieving machine. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.

Liquid Ceramic Slurry Circular Vibrating Screen Filter Sieve

Application


1. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.

Liquid ceramic slurry circular vibrating filter sieve screen is widely used in food industry, mining industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.

Liquid Ceramic Slurry Circular Vibrating Screen Filter Sieve

Advantages

1. Can be used with single or multilayer screen mesh.

2. Automatic discharge of materials, continuous operation.

3. No dead corner of parts, easy rinse thoroughly and disinfection.

4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.

5. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.

Technical data

Liquid ceramic slurry circular vibrating filter sieve screen can be up to 5 layers, and the mesh size can reach 500 mesh. We will choose a suitable model according to your specific materials and application.

Model

Power

(kw)

Diameter

(mm)

 Layer

Mesh Size

(mesh)

Frequency

(rpm)
TCXZS400 0.37 360 1-3 1-500 1500
TCXZS600 0.55 560 1-3 1-500 1500
TCXZS800 0.75 760 1-3 1-500 1500
TCXZS1000 1.1 960 1-3 1-500 1500
TCXZS1200 1.5 1130 1-3 1-500 1500
TCXZS1500 2.2 1430 1-3 1-500 1500
TCXZS1800 2.2 1730 1-3 1-500 1500
TCXZS2000 3 1730 1-3 1-500 1500
