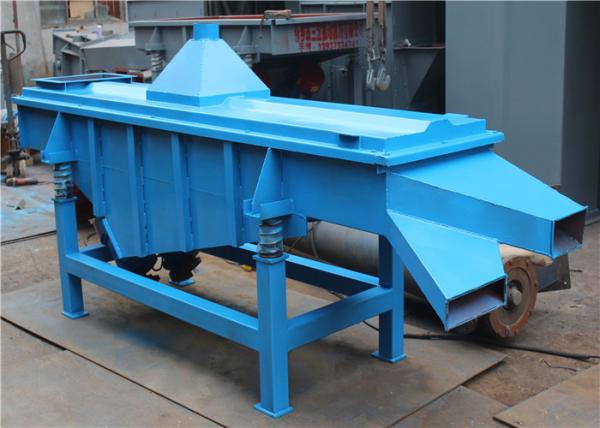

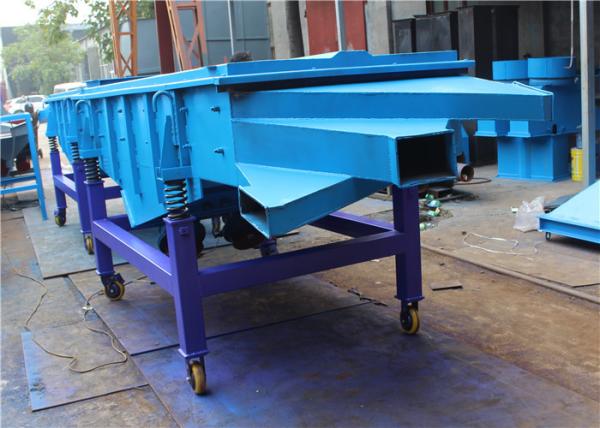

Carbon Steel Linear Vibrating Screen Of 2 Steps

Product description

Carbon Steel Linear Vibrating Screen Of 2 Steps is a high precision fine powder screening machine.The fundamental principle of vibrating screen sifter is that the unbalanced weight dropper installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities. Carbon Steel Linear Vibrating Screen Of 2 Steps can be used for grain, powder, granule, flake, liquid materials.

Technical data

The following table shows the detailed data of different models of Carbon Steel Linear Vibrating Screen Of 2 Steps for your reference.

Working principle

Carbon Steel Linear Vibrating Screen Of 2 Steps adopt twin vibrating exciters driving, when the two exciters rotated synchronously or reversed, the exciting force from the eccentric blocks will cancel each other on the direction of parallel to the motor axis, but stacking into a force on the direction of perpendicular to motor shaft, so the materials’ movement is one straight line. There is one inclination between the axial direction of two motors and screening surface, under the action of exciting force and the gravity force of the material, the materials are thrown up on the screen of Rectangular separator, jumps and moves forward in a straight line, achieving the sieving and classification purpose.

Application

Carbon Steel Linear Vibrating Screen Of 2 Steps is widely used in ore, mining industry, food industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.
