Three Layers Soda Lime 100T/H Powder Sieve Equipment
Three Layers Soda Lime 100T/H Powder Sieve Equipment
Specifications
Brand Name :
TECHANG
Model Number :
TCDZSF
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
20~30 working days
Packaging Details :
Wooden case
Name :
Three Layers Sieve Equipment Soda Lime Powder Linear Vibrating Screen
Application :
Soda Lime Powder
Capacity :
50 KG~100 T/H
Frequency :
960 t/min
Angle of oscillation :
45~60 degree
Layer(s) :
3 layers
Amplitude :
6-8 mm
Customized :
Acceptable
Description

Three Layers Sieve Equipment Soda Lime Powder Linear Vibrating Screen

Introduction

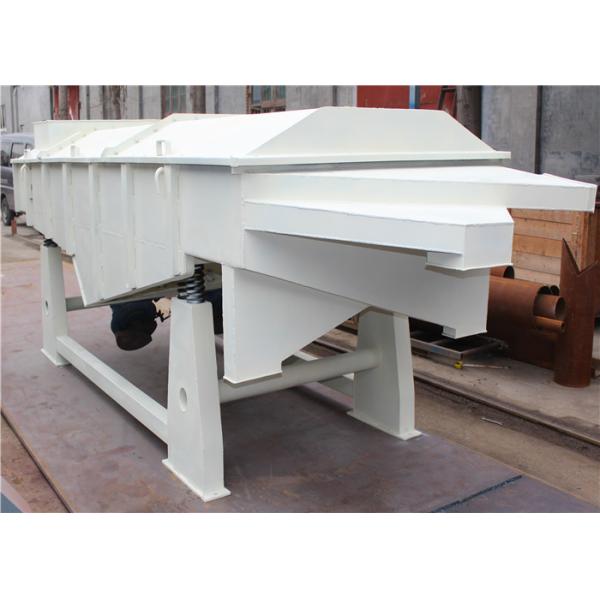

Three Layers Sieve Equipment Soda Lime Powder Linear Vibrating Screen is a kind of closed and light weight vibrating sieve equipment, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen surface, material evenly go into the feed port of linear vibrating screen from the feeding machine, generating multiple materials through the multilayer Three Layers Sieve Equipment Soda Lime Powder Linear Vibrating Screen, and be discharged from each outlets.

Three Layers Soda Lime 100T/H Powder Sieve Equipment

Features

1. Low consumption with high yield and low cost.
2. Fully enclosed structure, automatic layout, more suitable for pipeline operations.
3. Good sealing without dust flying.

Technical data

The below table shows the detailed data of different models of Three Layers Sieve Equipment Soda Lime Powder Linear Vibrating Screen for your reference. And we will choose a suitable model according to your materials and application.

Model Size of screen surface Number of layers of screen Mesh size Number of vibration amplitude Motor power
DZSF520 500*2000 1-6 2-400 mesh 960r/min 4-8 2×0.4
DZSF825 800×2500 1-6 2×(0.4-0.75)
DZSF1020 1000×2000 1-6 2×(0.75-1.5)
DZSF1030 1000×3000 1-6 2×(0.75-1.5)
DZSF1230 1200×3000 1-6 2×(0.75-3)
DZSF1530 1500×3000 1-6 2×(0.75-3)
DZSF1540 1500×4000 1-6 2×(0.75-3)

Application

Three Layers Sieve Equipment Soda Lime Powder Linear Vibrating Screen is widely used in food industry, mining industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.
