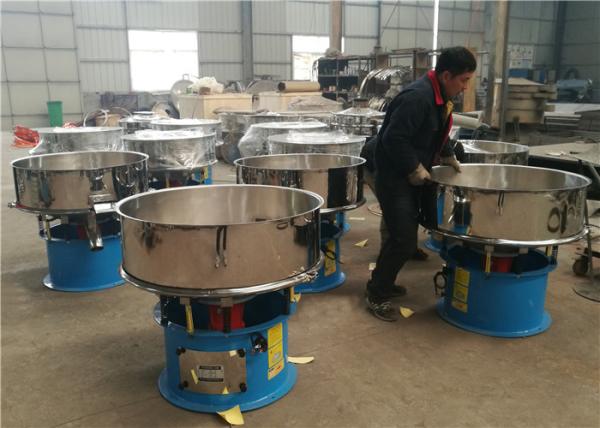

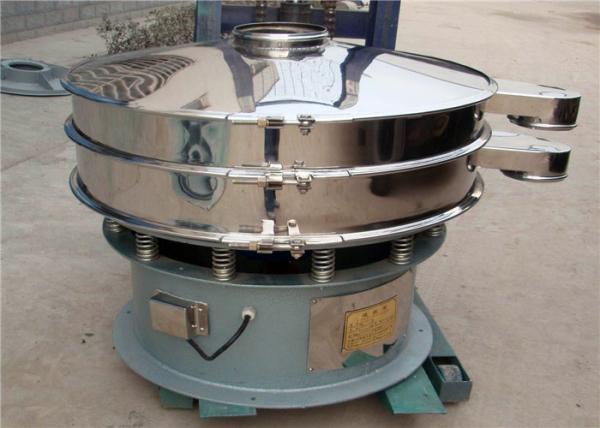

Stainless Steel Filter Separation Sieve Rotary Vibrating Screen

Introduction

Stainless Steel Filter Separation Sieve Rotary Vibrating Screen is a high precision screening machine.The fundamental principle of vibrating screen sifter is that the unbalanced weight dropper installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of filtering and removal of impurities. Stainless Steel Filter Separation Sieve Rotary Vibrating Screen can be used for grain, powder, granule, flake, liquid materials.

Structure

Application

Stainless Steel Filter Separation Sieve Rotary Vibrating Screen is widely used in food industry, mining industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.

1. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
4. Medicinal industry: all kinds of medicine.
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.

Advantages

1. Can be used with single or multilayer screen mesh.

2. Automatic discharge of materials, continuous operation.

3. No dead corner of parts, easy rinse thoroughly and disinfection.

4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.

5. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.

6. Small volume, less space occupation, easy to move,360 degree adjustment of discharge opening.

7. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, and filter can reach 5 um.

Technical data

Stainless Steel Filter Separation Sieve Rotary Vibrating Screen can be up to 5 layers, and the mesh size can reach 500 mesh. The following table shows the detailed data of different models for your reference.
