Separator Sieve Equipment Linear Motion Vibrating Screen

Introduction

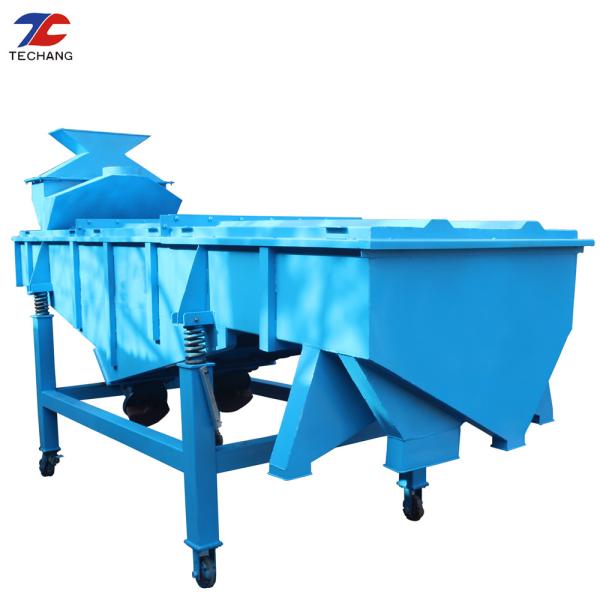

Separator Sieve Equipment Linear Motion Vibrating Screen is a kind of closed and light weight vibrating sieve equipment, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen surface, material evenly go into the feed port of linear vibrating screen from the feeding machine, generating multiple materials through the multilayer rectangular separator, and be discharged from each outlets.

Working principle

Separator Sieve Equipment Linear Motion Vibrating Screen adopt twin vibrating exciters driving, when the two exciters rotated synchronously or reversed, the exciting force from the eccentric blocks will cancel each other on the direction of parallel to the motor axis, but stacking into a force on the direction of perpendicular to motor shaft, so the materials’ movement is one straight line. There is one inclination between the axial direction of two motors and screening surface, under the action of exciting force and the gravity force of the material, the materials are thrown up on the screen of Rectangular separator, jumps and moves forward in a straight line, achieving the sieving and classification purpose.

Specification-Separator Sieve Equipment Linear Motion Vibrating Screen

Application-Separator Sieve Equipment Linear Motion Vibrating Screen

The linear vibrating screen can be applied to the screening and grading of powder and granular materials. It is widely used in plastics, rubber, ceramic, food, pharmaceutical, chemical, carbon, fertilizer, glass industries and so on.

1. Function

Screening & grading of dry powder, fine powder.

2. Other functions

Also apply to food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics and other industries, suitable for the dry powder or granular material screening

Feature--Separator Sieve Equipment Linear Motion Vibrating Screen

1. It can be used with single or multilayer screen cloth.

2. Automatic discharge of materials, continuous operation.

3. No dead corner of parts, easy rinse thoroughly and disinfection.

4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.

5. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.

6. Small volume, less space occupation, easy to move,360 degree adjustment of discharge opening.

7. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, and filter can reach 5 um.
