50 / 60Hz Frequency Industrial Vibrating Screen Carbon Steel Sand Sieving Machine
50 / 60Hz Frequency Industrial Vibrating Screen Carbon Steel Sand Sieving Machine
Specifications
Brand Name :
TECHANG
Model Number :
TCXZS
Certification :
CE
Place of Origin :
China
MOQ :
One set
Price :
Negotiatable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Wooden case
Name :
Carbon Steel Sand Sieving Machine Rotary Vibrating Screen
Material :
Carbon steel
Layer(s) :
1-5 Layers
Mesh size :
2~500 mesh
Capacity :
20 KG/H~20 T/H
Surface :
Mirror polish
Motor Type :
Vibrating motor
Frequency :
50 / 60 HZ
Function :
Screening \ Separation \ Classification \ Filter
Customized :
Acceptable
Description

Carbon Steel Sand Sieving Machine Rotary Vibrating Screen

Application

Carbon Steel Sand Sieving Machine Rotary Vibrating Screen is widely used in ore, mining industry, food industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.

50 / 60Hz Frequency Industrial Vibrating Screen Carbon Steel Sand Sieving Machine

Introduction

Carbon Steel Sand Sieving Machine Rotary Vibrating Screen is a high precision fine powder sieving machine. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.

50 / 60Hz Frequency Industrial Vibrating Screen Carbon Steel Sand Sieving Machine

Specification

The below table shows the detailed data of different models of Carbon Steel Sand Sieving Machine Rotary Vibrating Screen for your reference.


Model		 Power Diameter of screen surface layer Mesh size
TCXZS600 0.37kw 560mm 1-5 0-500mesh
TCXZS800 0.55KW 760mm 1-5 0-500mesh
TCXZS1000 0.75KW 930mm 1-5 0-500mesh
TCXZS1200 1.5KW 1130mm 1-5 0-500mesh
TCXZS1500 2.0KW 1430mm 1-5 0-500mesh
TCXZS1800 2.2KW 1730mm 1-5 0-500mesh
TCXZS2000 2.5KW 1930mm 1-5 0-500mesh


50 / 60Hz Frequency Industrial Vibrating Screen Carbon Steel Sand Sieving Machine

Detail Pictures

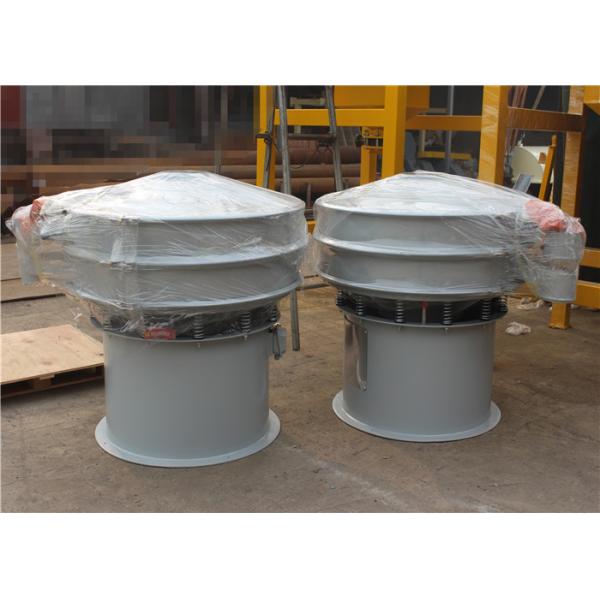

Carbon Steel Sand Sieving Machine Rotary Vibrating Screen​ consists of top cover, screen frame, screening mesh, clamp, vibrator, vibration motor, support base, and so on.

50 / 60Hz Frequency Industrial Vibrating Screen Carbon Steel Sand Sieving Machine

Advantages

1. Can be used with single or multilayer screen mesh.

2. Automatic discharge of materials, continuous operation.

3. No dead corner of parts, easy rinse thoroughly and disinfection.

4. Small volume, less space occupation, easy to move,360 degree adjustment of discharge opening.

5. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening, screen can reach 500 meshes, and filter can reach 5 um.
