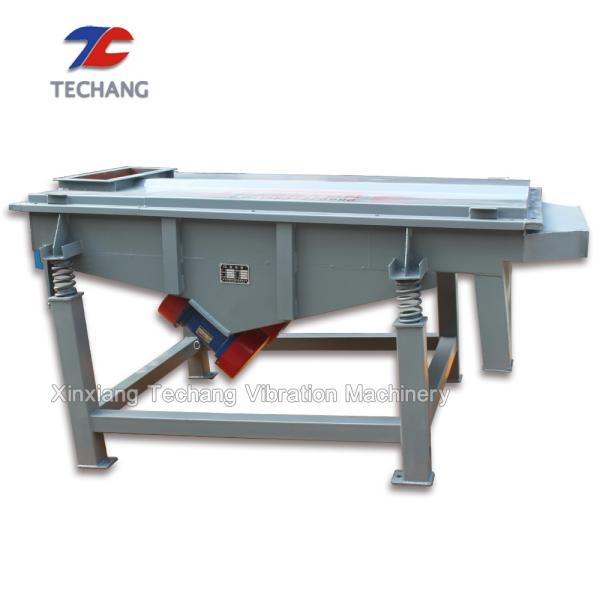

High Capacity Perlite Powder Linear Vibrating Screen

Introduction

High Capacity Perlite Powder Linear Vibrating Screen is a kind of closed and light weight vibrating sieve equipment, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen surface, material evenly go into the feed port of linear vibrating screen from the feeding machine, generating multiple materials through the multilayer rectangular separator, and be discharged from each outlets.

Working principle

High Capacity Perlite Powder Linear Vibrating Screen adopt twin vibrating exciters driving, when the two exciters rotated synchronously or reversed, the exciting force from the eccentric blocks will cancel each other on the direction of parallel to the motor axis, but stacking into a force on the direction of perpendicular to motor shaft, so the materials’ movement is one straight line. There is one inclination between the axial direction of two motors and screening surface, under the action of exciting force and the gravity force of the material, the materials are thrown up on the screen of Rectangular separator, jumps and moves forward in a straight line, achieving the sieving and classification purpose.

Features-High Capacity Perlite Powder Linear Vibrating Screen

1. Low consumption with high yield and low cost.
2. Fully enclosed structure, automatic layout, more suitable for pipeline operations.
3. Good sealing without dust flying.
4. Can be used for single or multi layer.
5. Material auto discharge, be able to continuous operation.
6. Every part of the screen box used copper plate and section welded together.

Application

High Capacity Perlite Powder Linear Vibrating Screen can be applied to the screening and grading of powder and granular materials. It is widely used in plastics, rubber, ceramic, food, pharmaceutical, chemical, carbon, fertilizer, glass industries and so on.

Technical data-High Capacity Perlite Powder Linear Vibrating Screen
